AMT49100KJPTR-A-3 footprint, schematic symbol and 3D model by Allegro Microsystems

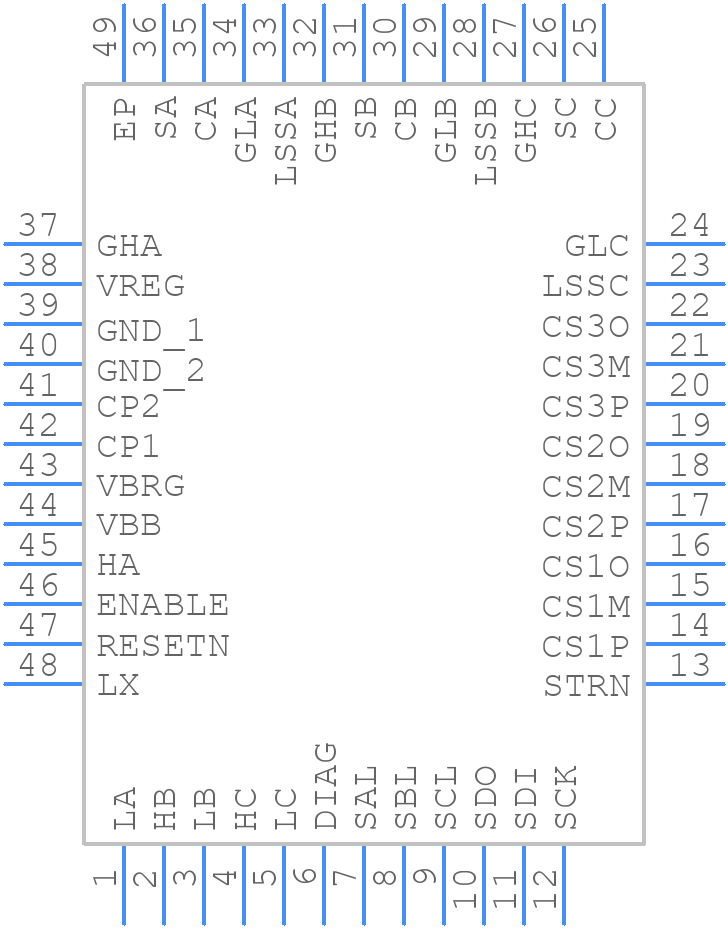

Symbol

PCB Footprints

3D Models

AMT49100KJPTR-A-3 Details

A good PCB layout for the AMT49100KJPTR-A-3 involves keeping the sensor and the PCB traces as close to the motor as possible, using a solid ground plane, and minimizing the length of the traces to reduce noise and EMI.
Calibration involves adjusting the zero-point and sensitivity of the sensor to match the motor's specific characteristics. This can be done by taking measurements at different motor positions and speeds, and adjusting the sensor's offset and gain accordingly.
The AMT49100KJPTR-A-3 has an operating temperature range of -40°C to 150°C, but it's recommended to operate it within a narrower range (e.g., 0°C to 125°C) for optimal performance and reliability.
To minimize EMI, use a shielded cable for the sensor's output, keep the sensor and PCB traces away from high-current carrying wires, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
The recommended power supply voltage for the AMT49100KJPTR-A-3 is 5V ±10%, and the maximum current consumption is 20mA. It's recommended to use a low-noise, regulated power supply to ensure optimal performance.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AMT49100KJPTR-A-3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AMT49, or try a keyword search, such as MOSFET Drivers
