AMT49100KJPTR-B-3 - Allegro Microsystems

Description: 80V BLDC Gate Driver W/ASIL Features

Download AMT49100KJPTR-B-3 Model

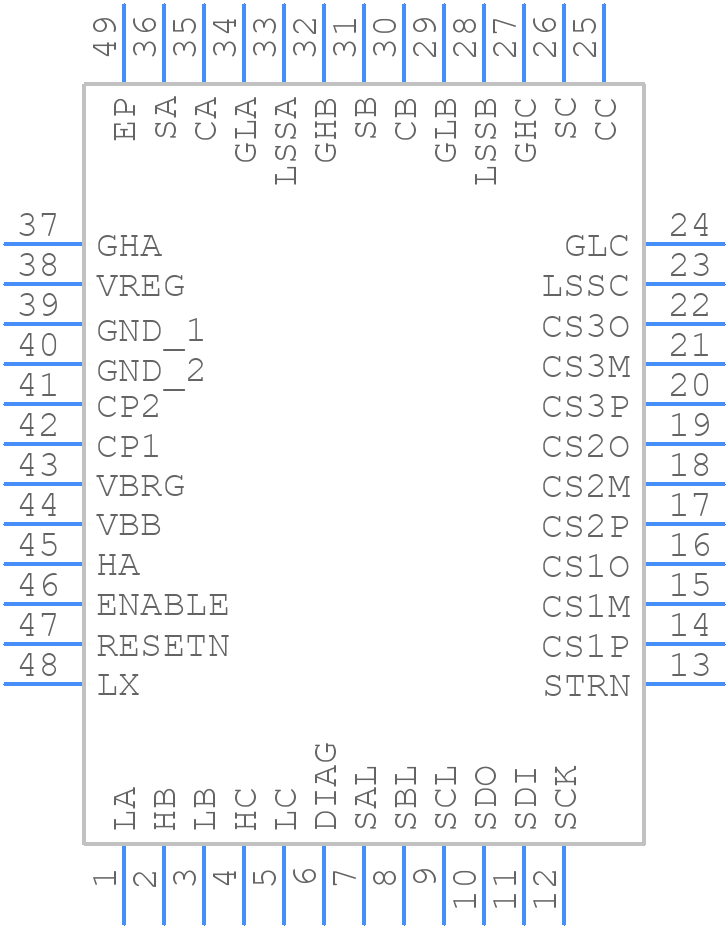

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AMT49100KJPTR-B-3 - Allegro Microsystems PCB footprint - Other - Other - Package JP, 48-Pin LQFP
click to zoom
3D Models
AMT49100KJPTR-B-3 - Allegro Microsystems  - 3D model - Other - Package JP, 48-Pin LQFP
click to zoom

AMT49100KJPTR-B-3 Details

  • Manufacturer Part Number:

    AMT49100KJPTR-B-3

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    6

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

AMT49100KJPTR-B-3 Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout in their application note AN296065, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Calibration involves adjusting the zero-current offset and sensitivity of the device. Allegro provides a calibration procedure in their datasheet, which involves applying a known current and adjusting the output voltage accordingly. Additionally, Allegro offers a calibration tool, the 90704A- CAL-Kit, to simplify the process.
  • The AMT49100KJPTR-B-3 is rated for operation from -40°C to 150°C, with a maximum junction temperature of 170°C. However, it's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • The AMT49100KJPTR-B-3 is designed for low-frequency current measurements (up to 100 kHz). For high-frequency measurements, Allegro recommends using their high-bandwidth current sensors, such as the ACS724 or ACS725 series, which are designed for frequencies up to 1 MHz.
  • To minimize EMI effects, Allegro recommends using proper shielding, grounding, and layout techniques. Additionally, using a common-mode choke or a ferrite bead on the output lines can help filter out high-frequency noise.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMT49100KJPTR-B-3 Overview

Use the download button to access the AMT49100KJPTR-B-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMT49, or try a keyword search, such as MOSFET Drivers
