- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AN3-4092B
- Part Number AN3-4092B
- Manufacturer Panasonic
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - AN34092B
- Released Date Nov 2, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AN3-4092B Details
-
Manufacturer Part Number:
AN3-4092B
-
Manufacturer:
Panasonic Electronic Components
Trust Checks
Community Provided
System Verified
Community Approved
AN3-4092B Overview

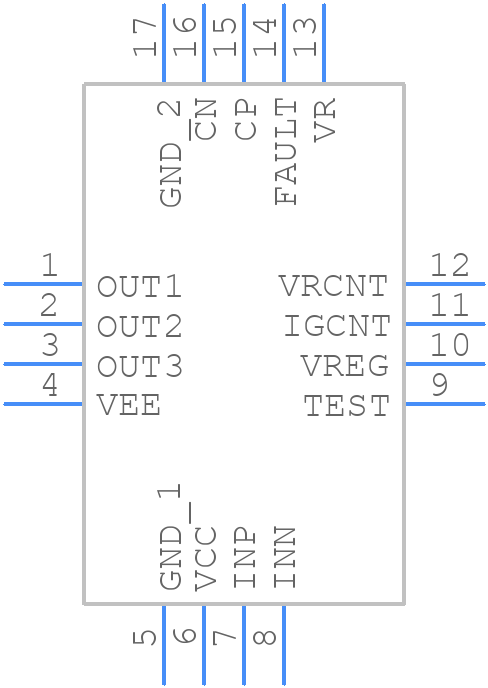

Use the download button to access the AN3-4092B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AN3-4,
or try a keyword search, such as MOSFET Drivers
