A good PCB layout for the AN33014UA-VB should consider the following: keep the input and output traces short and separate, use a solid ground plane, and place decoupling capacitors close to the IC. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the output voltage, make sure to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. A 10uF to 22uF ceramic capacitor is recommended. Additionally, ensure that the input voltage is within the specified range and the output current is within the maximum rating.
The maximum ambient temperature for reliable operation of the AN33014UA-VB is 85°C. However, it's recommended to derate the output current and consider heat sinking or thermal management for high-temperature applications.
Yes, the AN33014UA-VB is designed to withstand vibrations up to 10G (10 times the acceleration due to gravity). However, it's essential to ensure that the PCB is properly secured and the components are properly soldered to prevent mechanical stress.
To protect the AN33014UA-VB from overvoltage and undervoltage conditions, consider using a voltage supervisor or a reset IC that can detect and respond to voltage faults. Additionally, ensure that the input voltage is within the specified range and use a suitable input capacitor to filter out voltage spikes.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AN33014UA-VB Overview

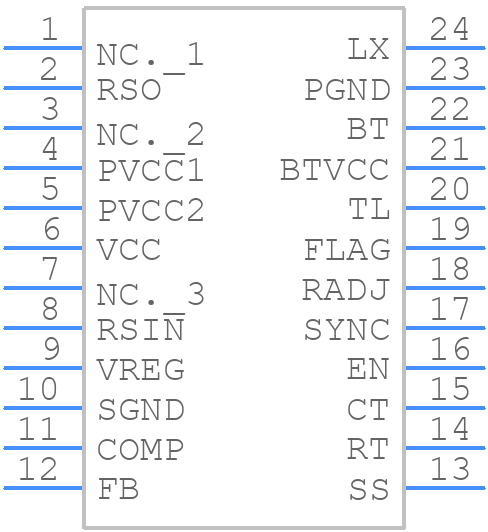

Use the download button to access the AN33014UA-VB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AN330,
or try a keyword search, such as Switching Regulator or Controllers
