- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AN34092B
- Part Number AN34092B
- Manufacturer Panasonic
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - AN34092B
- Released Date Nov 2, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AN34092B Details
-
Manufacturer Part Number:
AN34092B
-
Part Life Cycle Code:
Obsolete
-
Package Description:
QFN-16
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Panasonic Electronic Components
-
YTEOL:
0
-
Interface IC Type:
BUFFER OR INVERTER BASED MOSFET DRIVER
-
JESD-30 Code:
S-PQCC-N16
-
Length:
4 mm
-
Number of Functions:
1
AN34092B Frequently Asked Questions (FAQs)
-
A good PCB layout for AN34092B involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the IC. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
-
To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. Additionally, the output capacitor should be placed close to the IC, and the input capacitor should be selected based on the input voltage and current requirements.
-
Although the datasheet specifies an operating temperature range of -40°C to 85°C, it's recommended to derate the device's performance at high temperatures. For reliable operation, it's suggested to keep the ambient temperature below 70°C to ensure the device's internal temperature remains within the safe operating range.
-
Yes, AN34092B is designed to operate in high-vibration environments. However, it's essential to ensure the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Additionally, the PCB should be designed to withstand the vibration and shock requirements of the application.
-
To troubleshoot issues with AN34092B, start by checking the input voltage, output voltage, and current consumption. Verify that the input and output capacitors are properly selected and placed. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and current waveforms to identify any anomalies.
Trust Checks
Community Provided
System Verified
Community Approved
AN34092B Overview

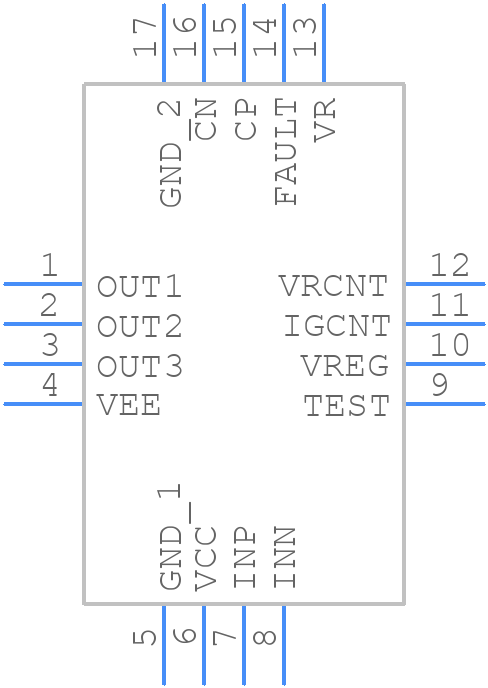

Use the download button to access the AN34092B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AN340,
or try a keyword search, such as MOSFET Drivers
