AN5534 - Panasonic

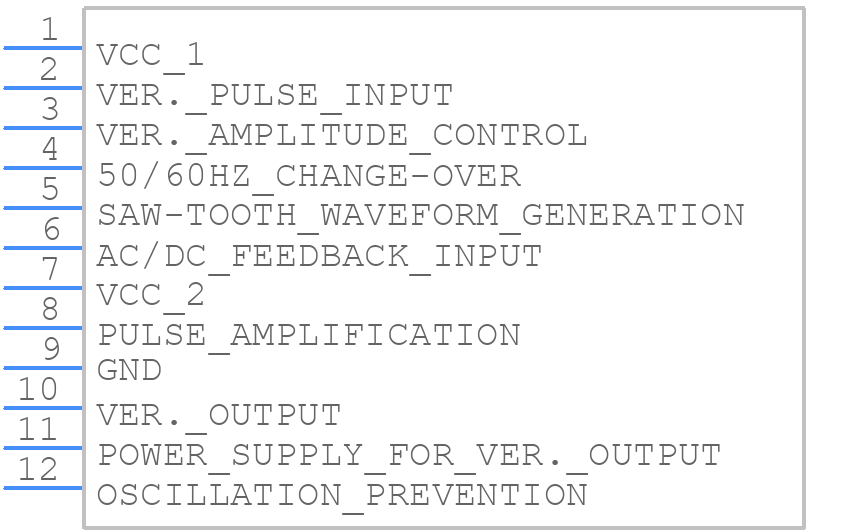

AN5534 Details

• Manufacturer Part Number:

  AN5534

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SFM

• Package Description:

  HEAT SINK, PLASTIC, SIP-12

• Pin Count:

  12

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  0

• Additional Feature:

  IT ALSO OPERATE WITH 10V TO 30V SUPPLY

• Application:

  TV

• Blanking Output:

  NO

• Consumer IC Type:

  VERTICAL DEFLECTION IC

• JESD-30 Code:

  R-PSFM-T12

• Number of Functions:

  1

• Number of Terminals:

  12

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SFM

• Package Equivalence Code:

  SIP12,.07TB

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Qualification Status:

  Not Qualified

• Supply Voltage-Max (Vsup):

  15 V

• Supply Voltage-Min (Vsup):

  7.5 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  SINGLE
