ANMG08PL - AD Semicon

Description:  8-Channel capacitive sensor with auto sensitivity calibration  Available LED PWM drive up to 8  Multi interface - I2C serial interface / Parallel outputs  Selectable output operation mode (Single output / Multi output)  Adjustable 256 steps sensitivity  Almost no external component needed  Low current consumption  Embedded common and normal noise elimination circuit  RoHS compliant 24SSOP packages  Moisture sensitivity level 3 (MSL3)  3.0V to 5.5V operation  Power consumption -

Download ANMG08PL Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ANMG08PL model

Email notifications will be applied after download.

Send part feedback

Symbol

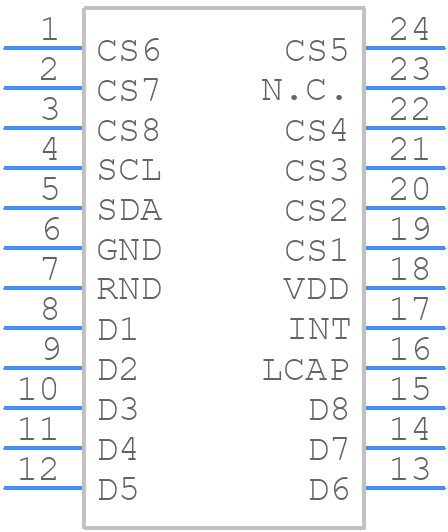

ANMG08PL - AD Semicon - PCB symbol

PCB Footprints

ANMG08PL - AD Semicon PCB footprint - Small Outline Packages - Small Outline Packages - 24SSOP

3D Models

ANMG08PL - AD Semicon - 3D model - Small Outline Packages - 24SSOP

Datasheet Download Datasheet
Stock & Prices Price & Stock for ANMG08PL
Part Number ANMG08PL
Manufacturer AD Semicon
Pin Count 24
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 24SSOP
Released Date Feb 11, 2025
Last Modified Date Feb 11, 2025 10:05 AM UTC
Pinout / Pin List Click Here (Member Only)

ANMG08PL Details

Manufacturer Part Number:
ANMG08PL
Manufacturer:
AD Semiconductor
