ANQ-I1B-01B-S-Z - Zippy

Description: Rotary Switch , Resistance Min 100MΩ Max.300mΩ , Vibration 10~55 Hz , Rating 1mA 10VDC ,Temperature Range 0℃ to 40℃

Download ANQ-I1B-01B-S-Z Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ANQ-I1B-01B-S-Z model

Email notifications will be applied after download.

Send part feedback

Symbol

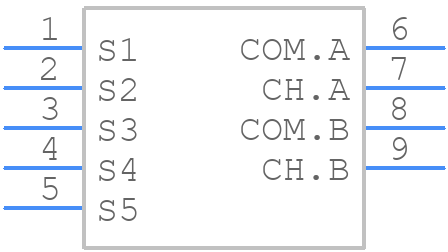

ANQ-I1B-01B-S-Z - Zippy - PCB symbol

PCB Footprints

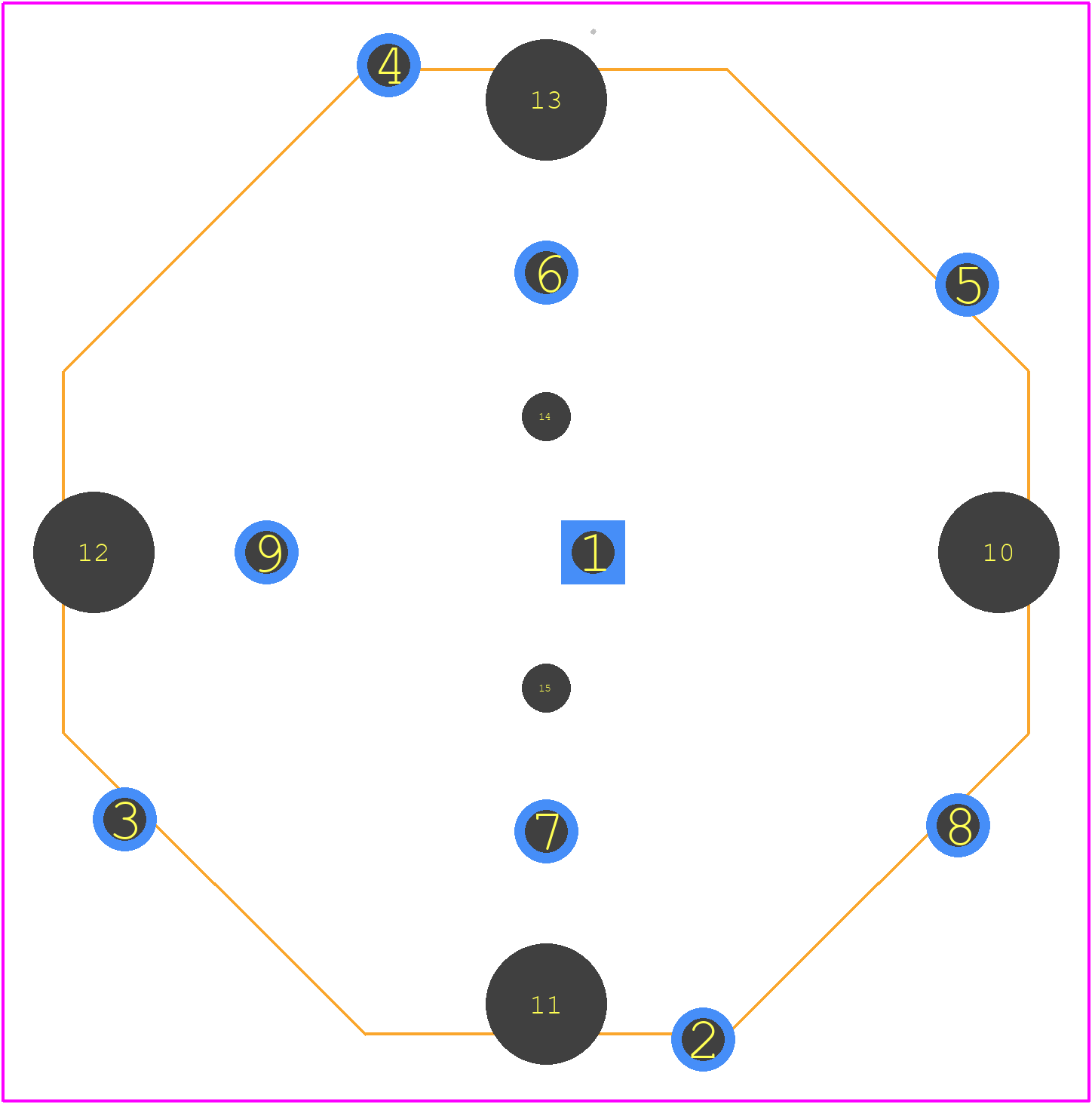

ANQ-I1B-01B-S-Z - Zippy PCB footprint - Other - Other - ANQ-I1B-01B-S-Z

3D Models

ANQ-I1B-01B-S-Z - Zippy - 3D model - Other - ANQ-I1B-01B-S-Z

Datasheet Download Datasheet
Stock & Prices Price & Stock for ANQ-I1B-01B-S-Z
Part Number ANQ-I1B-01B-S-Z
Manufacturer Zippy
Pin Count 9
Part Category Switch
Package Category Other
Footprint Name Other - ANQ-I1B-01B-S-Z
Released Date Aug 22, 2024
Last Modified Date Aug 1, 2025 5:59 AM UTC
Pinout / Pin List Click Here (Member Only)

ANQ-I1B-01B-S-Z Details

Manufacturer Part Number:
ANQ-I1B-01B-S-Z
Manufacturer:
Zippy Technology

Trust Checks

Community Provided

System Verified

Community Approved

ANQ-I1B-01B-S-Z Overview

Use the download button to access the ANQ-I1B-01B-S-Z schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ANQ-I, or try a keyword search, such as Circuit Breaker
