- Part Number ANT-916-CHP-T
- Manufacturer TE Connectivity
- Pin Count 2
- Part Category Antenna
- Package Category Other

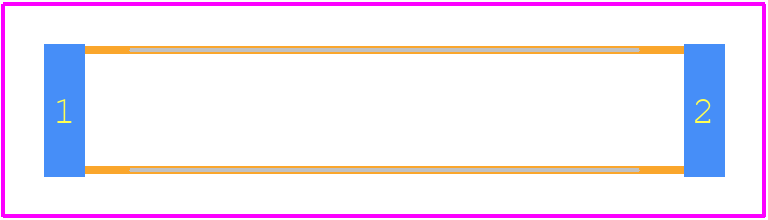

- Footprint Name Other - ANT-916-CHP-T-2
- Released Date Nov 17, 2019
- Last Modified Date Apr 16, 2025 10:09 AM UTC
- Pinout / Pin List Click Here (Member Only)
ANT-916-CHP-T Details
-
Manufacturer Part Number:
ANT-916-CHP-T
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Factory Lead Time:
9 Weeks, 5 Days
-
Manufacturer:
TE Connectivity
-
YTEOL:
6
-
Additional Feature:
HIGH RELIABILITY
-
Application:
BLUETOOTH
-
Bandwidth:
10 MHz
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
ANT-916-CHP-T Frequently Asked Questions (FAQs)
-
TE Connectivity provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize signal loss, and prevent electromagnetic interference (EMI).
-
TE Connectivity offers a range of antennas compatible with the ANT-916-CHP-T module. Factors to consider when selecting an antenna include frequency band, gain, polarization, and environmental conditions. Consult with TE Connectivity's antenna selection guide or contact their technical support for assistance.
-
While the datasheet specifies the operating temperature range, it's essential to note that the module's performance may degrade at extreme temperatures. TE Connectivity recommends operating the module within the specified range (-40°C to +85°C) for optimal performance and reliability.
-
Proper shielding and grounding are crucial to minimize electromagnetic interference (EMI) and ensure reliable operation. TE Connectivity recommends following their guidelines for shielding and grounding, which include using a metal shield can, grounding the shield to the PCB, and ensuring a solid ground connection to the module.
-
The ANT-916-CHP-T module meets various regulatory requirements, including FCC, CE, and IC certifications. However, it's essential to ensure that your final product meets all applicable regulatory requirements, including those related to safety, electromagnetic compatibility (EMC), and radio frequency (RF) emissions.
