ANT016008LCD1575MA1 - TDK

Description: TDK - ANT016008LCD1575MA1 - CHIP ANTENNA, 1.57/2.4GHZ, GPS/ISM, 0603

Download ANT016008LCD1575MA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

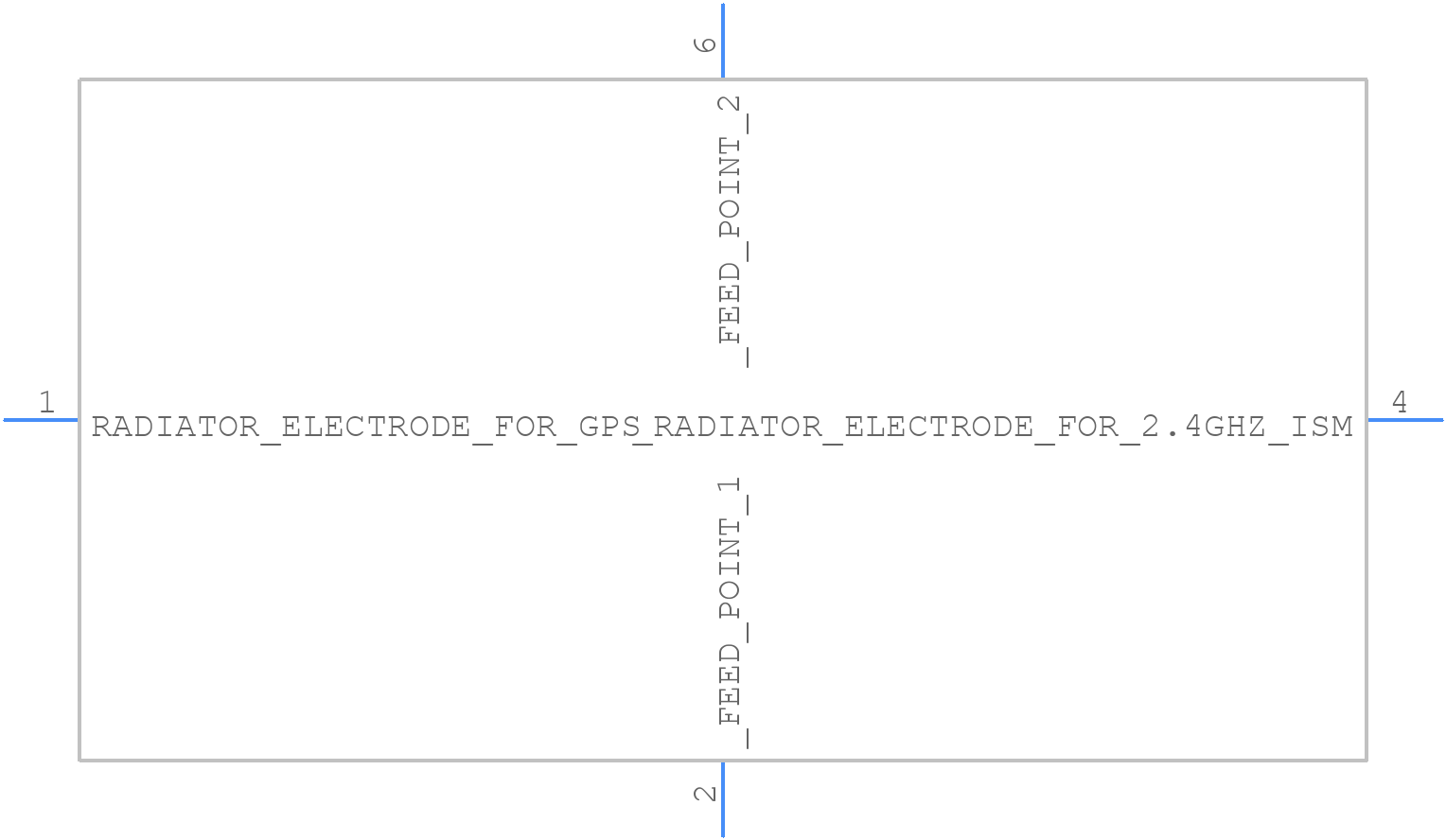

Symbol
ANT016008LCD1575MA1 - TDK - PCB symbol
click to zoom
PCB Footprints
ANT016008LCD1575MA1 - TDK PCB footprint - Other - Other - ANT016008LCD1575MA1-2
click to zoom
3D Models
ANT016008LCD1575MA1 - TDK - 3D model - Other - ANT016008LCD1575MA1-2
click to zoom

ANT016008LCD1575MA1 Details

  • Manufacturer Part Number:

    ANT016008LCD1575MA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIE-6

  • Country Of Origin:

    Mainland China

  • Date Of Intro:

    2016-12-09

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Additional Feature:

    IT CAN ALSO OPERATE AT 2400 TO 2484 MHZ

  • Application:

    GPS/ISM

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Omnidirectional:

    NO

  • Operating Frequency-Max:

    1576 MHz

  • Operating Frequency-Min:

    1574 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Polarization:

    RHCP/LINEAR

  • RF/Microwave Device Type:

    GPS ANTENNA

  • VSWR-Max:

    4

ANT016008LCD1575MA1 Frequently Asked Questions (FAQs)

  • The recommended storage condition for ANT016008LCD1575MA1 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C and humidity below 70%.
  • Yes, the ANT016008LCD1575MA1 is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments. However, it's recommended to consult with TDK Corporation for specific vibration testing and validation.
  • The maximum operating temperature range for the ANT016008LCD1575MA1 is -40°C to 85°C. However, it's recommended to derate the component's performance at temperatures above 70°C.
  • Yes, the ANT016008LCD1575MA1 is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The recommended PCB layout and land pattern for the ANT016008LCD1575MA1 can be found in the TDK Corporation's application note or by consulting with their technical support team.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ANT016008LCD1575MA1 Overview

Use the download button to access the ANT016008LCD1575MA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ANT01, or try a keyword search, such as RF/Microwave Antennas

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
