The recommended land pattern for ANT016008LCS2442MA1 can be found in the TDK Corporation's application note or in the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent defects.
To prevent damage, it's recommended to handle the component by the edges, avoid touching the pins, and use an anti-static wrist strap or mat to prevent electrostatic discharge. Additionally, follow the recommended storage and handling procedures outlined in the datasheet.
The maximum operating temperature range for ANT016008LCS2442MA1 is -40°C to +125°C. However, it's essential to note that the component's performance may degrade at extreme temperatures, and it's recommended to operate within the recommended temperature range for optimal performance.
Yes, ANT016008LCS2442MA1 is designed to withstand high-vibration environments. However, it's essential to follow the recommended mounting and soldering procedures to ensure the component is securely attached to the PCB. Additionally, consider using a vibration-resistant adhesive or potting compound to further secure the component.
To troubleshoot issues with ANT016008LCS2442MA1, start by checking the component's soldering and assembly. Verify that the component is properly soldered and that there are no signs of damage or contamination. Use a multimeter to check for continuity and shorts. If the issue persists, consult the datasheet and application notes or contact TDK Corporation's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ANT016008LCS2442MA1 Overview

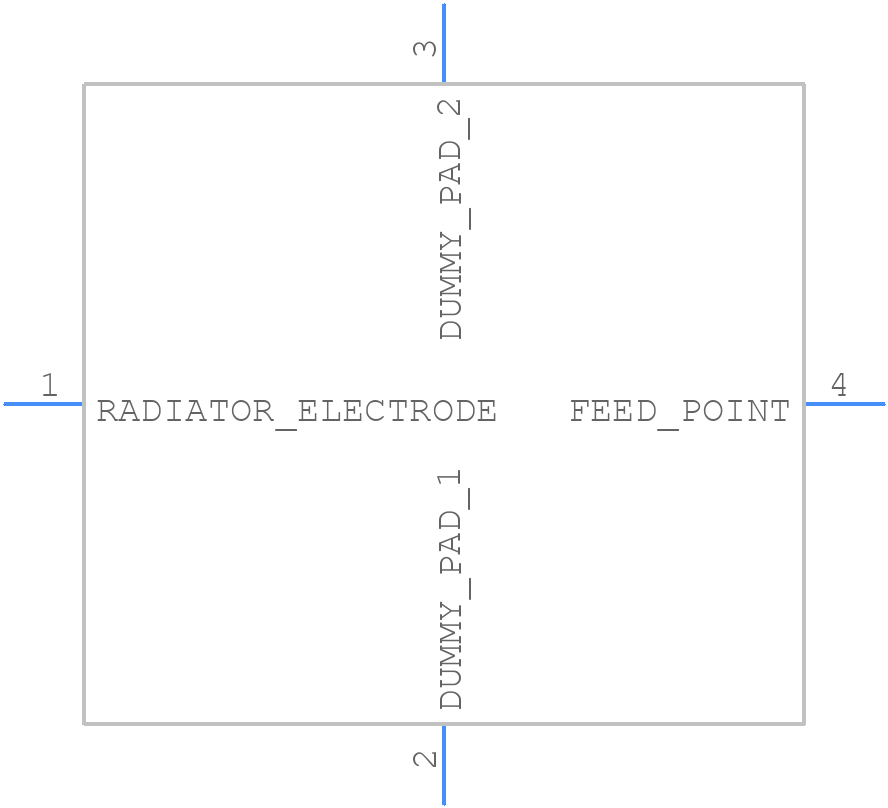

Use the download button to access the ANT016008LCS2442MA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ANT01,
or try a keyword search, such as RF/Microwave Antennas
