ANT016008LCS2442MA2 - TDK

Description: TDK - ANT016008LCS2442MA2 - CHIP ANTENNA, 2.4GHZ, ISM, 50 OHM, 0603

Download ANT016008LCS2442MA2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

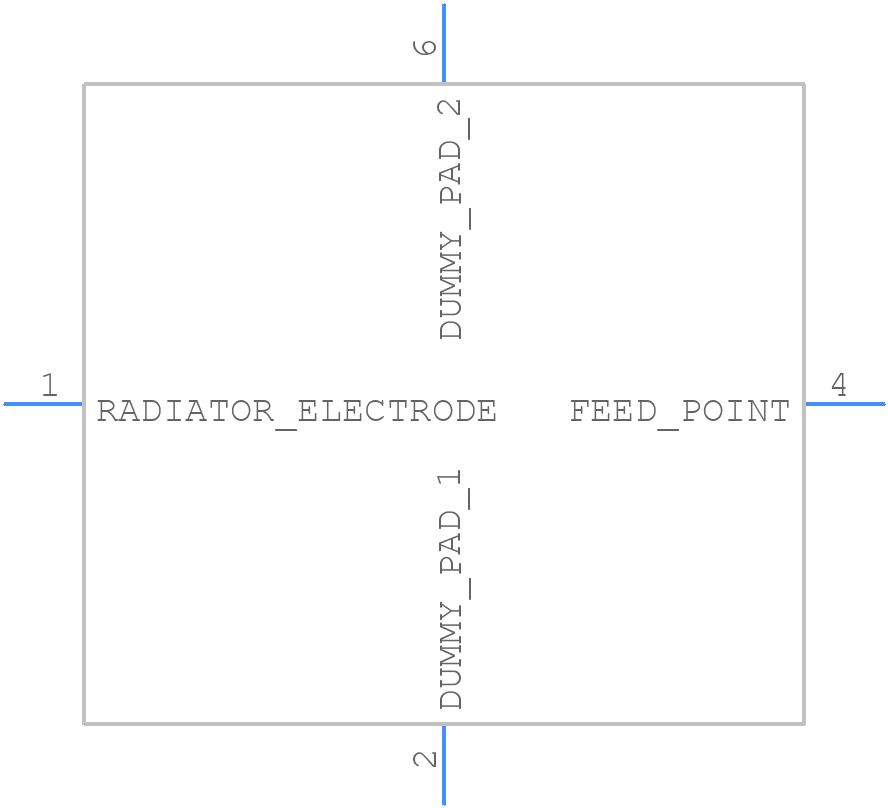

ANT016008LCS2442MA2 - TDK - PCB symbol
click to zoom
PCB Footprints
ANT016008LCS2442MA2 - TDK PCB footprint - Other - Other - ANT016008LCS2442MA2-2
click to zoom
3D Models
ANT016008LCS2442MA2 - TDK - 3D model - Other - ANT016008LCS2442MA2-2
click to zoom

ANT016008LCS2442MA2 Details

  • Manufacturer Part Number:

    ANT016008LCS2442MA2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT PACKAGE-6

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Bandwidth:

    42 MHz

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Omnidirectional:

    NO

  • Operating Frequency-Max:

    2484 MHz

  • Operating Frequency-Min:

    2400 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Polarization:

    LINEAR

  • RF/Microwave Device Type:

    ANTENNA-OTHER

  • VSWR-Max:

    3

ANT016008LCS2442MA2 Frequently Asked Questions (FAQs)

  • The recommended land pattern for ANT016008LCS2442MA2 is a rectangular pad with a size of 1.7mm x 1.4mm, with a non-solder mask defined (NSMD) pad shape.
  • To handle thermal management, ensure good airflow around the component, and consider using a thermal interface material (TIM) or a heat sink if the operating temperature exceeds 85°C.
  • The maximum allowable voltage for ANT016008LCS2442MA2 is 50V, but it's recommended to operate within the rated voltage range of 1.8V to 3.6V for optimal performance and reliability.
  • Yes, ANT016008LCS2442MA2 is suitable for high-frequency applications up to 2.4GHz, but ensure proper impedance matching and consider using a pi-filter or other filtering components to minimize signal loss and noise.
  • To ensure reliability in a humid environment, consider applying a conformal coating to the component, and ensure the PCB is designed with moisture-resistant materials and a robust cleaning process.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ANT016008LCS2442MA2 Overview

Use the download button to access the ANT016008LCS2442MA2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ANT01, or try a keyword search, such as RF/Microwave Antennas

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
