The recommended land pattern for ANT161575ST-1202A1 can be found in the TDK Corporation's application note or by contacting their technical support team. The land pattern is critical to ensure proper mounting and to prevent thermal and electrical issues.
To prevent damage, it is recommended to handle the ANT161575ST-1202A1 by the edges, avoiding touching the component's electrical contacts. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage.
The maximum reflow temperature for ANT161575ST-1202A1 is 260°C, as specified in the datasheet. Exceeding this temperature may cause damage to the component.
While the ANT161575ST-1202A1 is designed to be robust, it's essential to evaluate the component's performance in a high-vibration environment. TDK Corporation may provide additional information or recommendations for specific use cases. Consult with their technical support team for guidance.
Store the ANT161575ST-1202A1 in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -10°C to 30°C, with a relative humidity of 60% or less.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ANT161575ST-1202A1 Overview

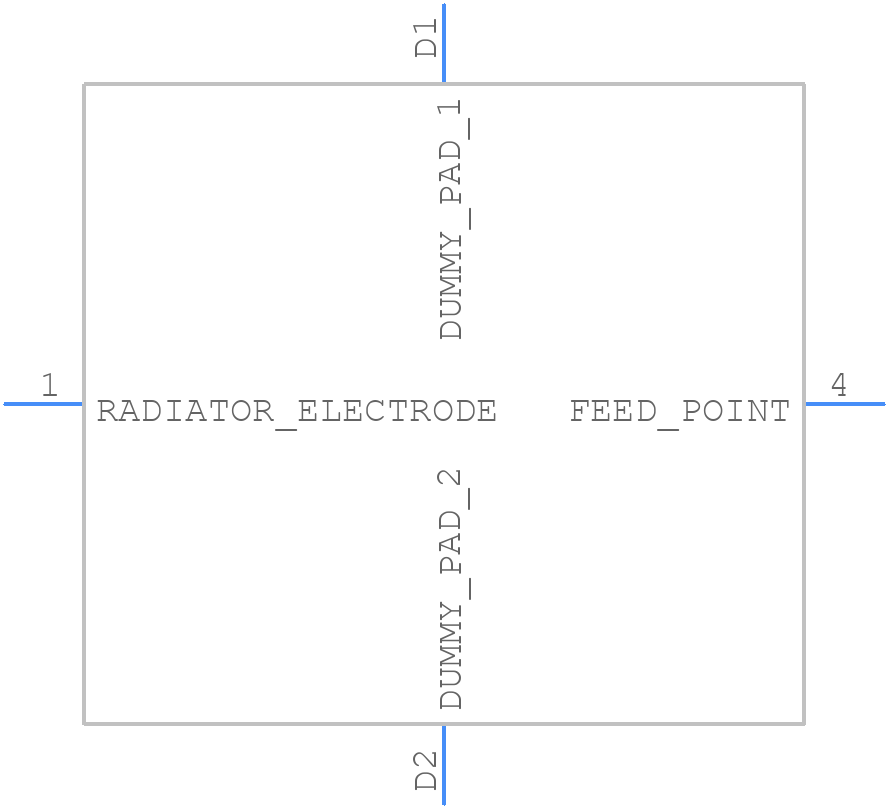

Use the download button to access the ANT161575ST-1202A1 schematic symbol, PCB footprint, and 3D model.
