ANT161575TT-3000A1 - TDK

Description: Chip Antennas, Pass Band1=1574 to 1577MHz;Pass Band2=2400 to 2484MHz;Pass Band3=5150 to 5850MHz

Download ANT161575TT-3000A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

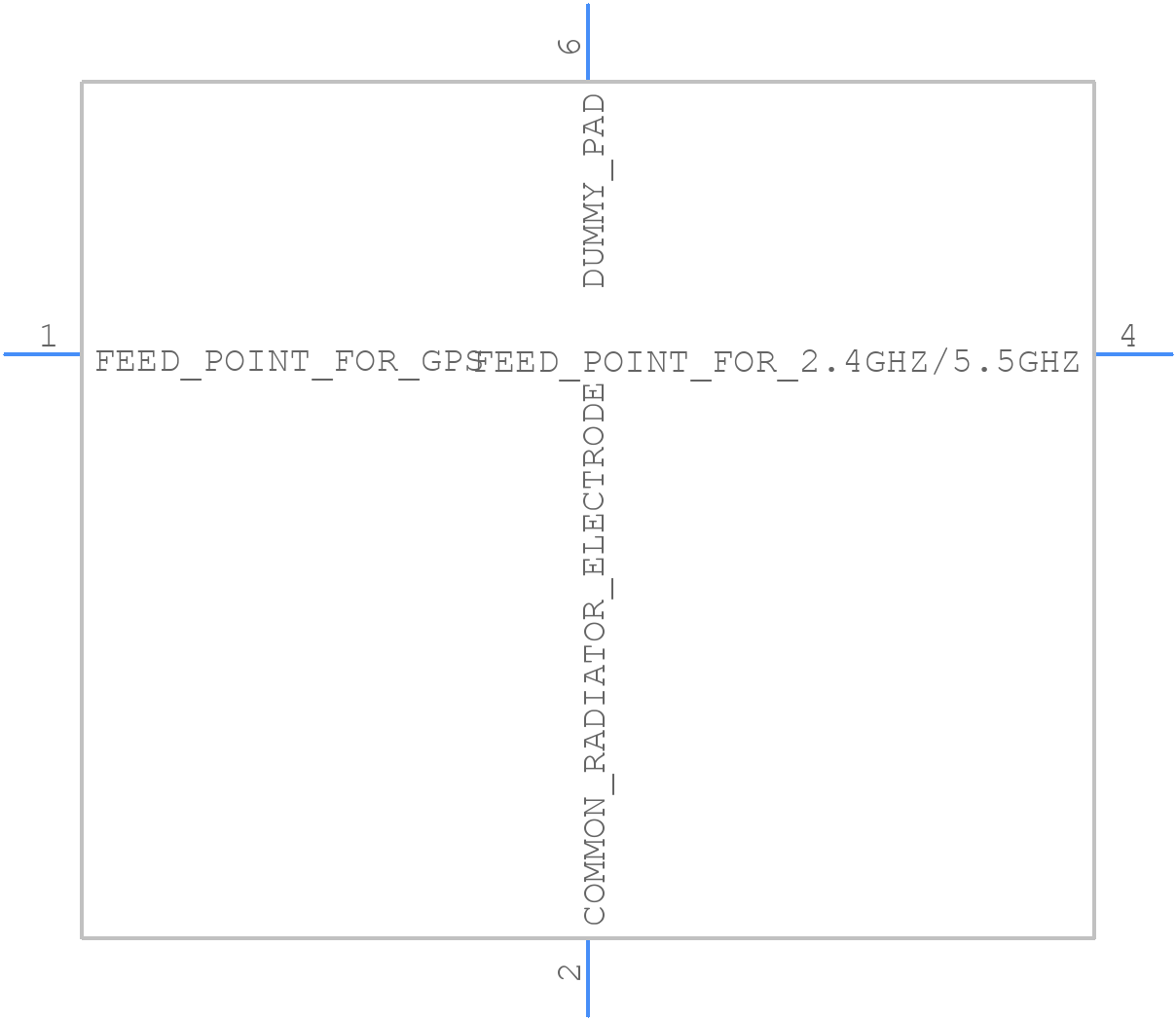

ANT161575TT-3000A1 - TDK - PCB symbol
click to zoom
PCB Footprints
ANT161575TT-3000A1 - TDK PCB footprint - Other - Other - ANT161575TT-3000A1-1
click to zoom
3D Models
ANT161575TT-3000A1 - TDK - 3D model - Other - ANT161575TT-3000A1-1
click to zoom

ANT161575TT-3000A1 Details

  • Manufacturer Part Number:

    ANT161575TT-3000A1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Additional Feature:

    IT CAN ALSO OPERATE AT 2400-2484 AND 5150-5850 MHZ

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Omnidirectional:

    NO

  • Operating Frequency-Max:

    1577 MHz

  • Operating Frequency-Min:

    1574 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Polarization:

    LINEAR

  • RF/Microwave Device Type:

    MOBILE STATION ANTENNA

  • Surface Mount:

    YES

  • VSWR-Max:

    4

ANT161575TT-3000A1 Frequently Asked Questions (FAQs)

  • TDK recommends a land pattern with a minimum pad size of 1.3mm x 0.8mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
  • Yes, ANT161575TT-3000A1 is designed to withstand vibrations up to 10G (rms) in the frequency range of 10Hz to 2kHz, making it suitable for use in high-vibration environments.
  • Handle the component by the edges or the recommended handling areas to prevent damage to the internal components. Avoid touching the component's terminals or applying excessive force, which can cause damage or electrical shorts.
  • Store ANT161575TT-3000A1 in a dry, cool place with a temperature range of -10°C to 40°C and relative humidity below 70%. Avoid exposing the component to direct sunlight, moisture, or extreme temperatures.
  • ANT161575TT-3000A1 is rated for operation up to 125°C, but derating is required for temperatures above 85°C. Consult the datasheet for specific derating guidelines and ensure the component is used within its recommended operating temperature range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ANT161575TT-3000A1 Overview

Use the download button to access the ANT161575TT-3000A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ANT16, or try a keyword search, such as RF/Microwave Antennas
