ANT162442DT-2001A2 - TDK

Description: Chip Antennas, Pass Band1=2400 to 2484MHz;Pass Band2=5150 to 5850MHz

Download ANT162442DT-2001A2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

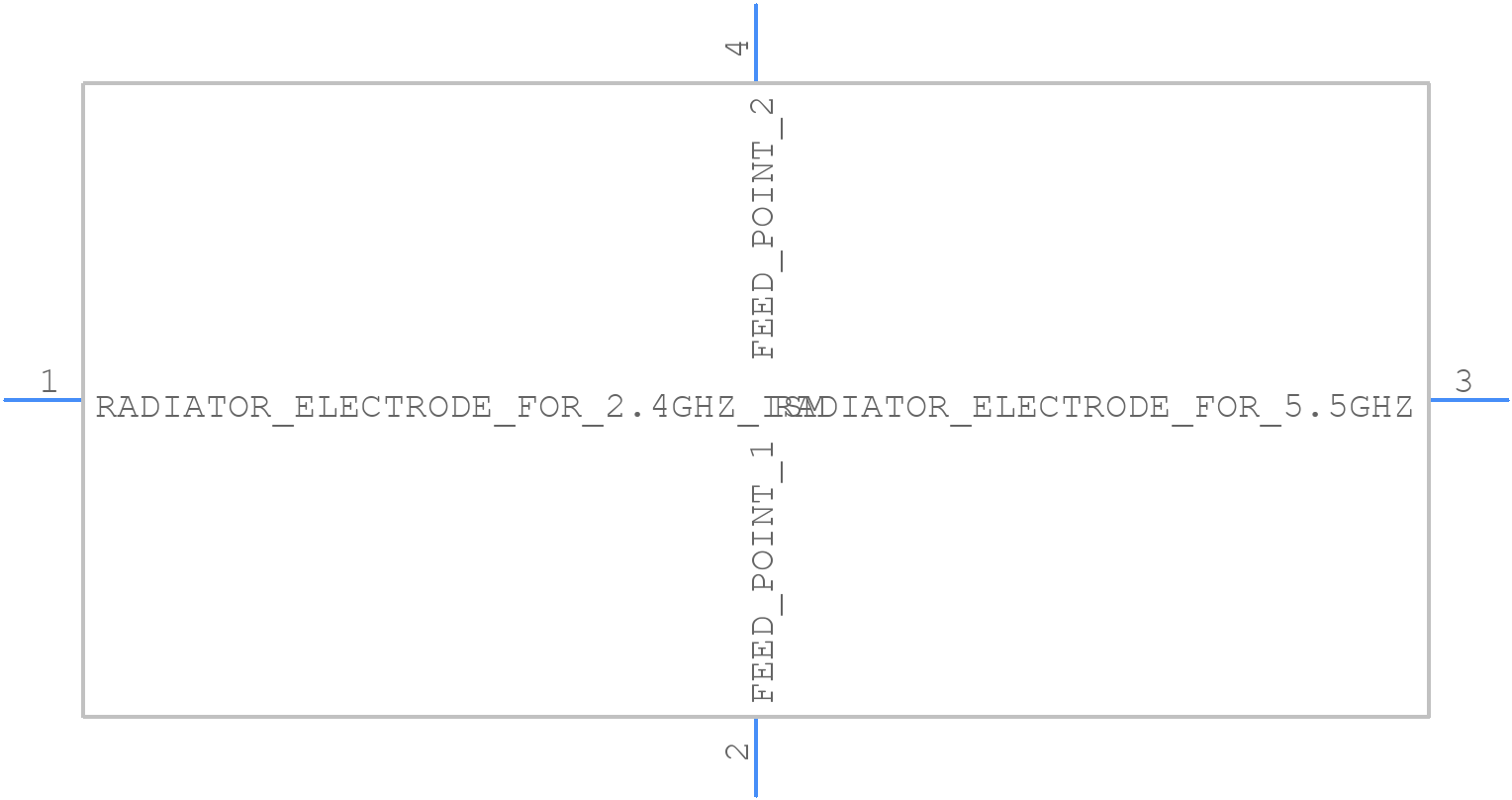

Symbol
ANT162442DT-2001A2 - TDK - PCB symbol
click to zoom
PCB Footprints
ANT162442DT-2001A2 - TDK PCB footprint - Other - Other - ANT162442DT-2001A2-1
click to zoom
3D Models
ANT162442DT-2001A2 - TDK - 3D model - Other - ANT162442DT-2001A2-1
click to zoom

ANT162442DT-2001A2 Details

  • Manufacturer Part Number:

    ANT162442DT-2001A2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Additional Feature:

    IT CAN ALSO BE OPERATED AT 5150 TO 5850 MHZ

  • Application:

    ISM

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Omnidirectional:

    NO

  • Operating Frequency-Max:

    2484 MHz

  • Operating Frequency-Min:

    2400 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Polarization:

    LINEAR

  • RF/Microwave Device Type:

    MOBILE STATION ANTENNA

  • Surface Mount:

    YES

  • VSWR-Max:

    3

ANT162442DT-2001A2 Frequently Asked Questions (FAQs)

  • The recommended land pattern for ANT162442DT-2001A2 can be found in the TDK Corporation's application note or by contacting their technical support team. It's essential to follow the recommended land pattern to ensure optimal performance and reliability.
  • To prevent damage, handle the ANT162442DT-2001A2 component by the edges, avoiding touching the pins or the component body. Use an anti-static wrist strap or mat to prevent electrostatic discharge. Follow standard SMT assembly procedures and guidelines for handling sensitive components.
  • The maximum reflow temperature for ANT162442DT-2001A2 is 260°C, as specified in the datasheet. Exceeding this temperature may cause damage to the component or affect its performance.
  • While the ANT162442DT-2001A2 is a robust component, it's essential to evaluate its performance in a high-vibration environment. TDK Corporation provides vibration testing data, and it's recommended to consult with their technical support team to ensure the component meets the specific application requirements.
  • Store the ANT162442DT-2001A2 component in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -10°C to 30°C, and the relative humidity should be below 70%. Follow the storage guidelines outlined in the datasheet or consult with TDK Corporation's technical support team.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ANT162442DT-2001A2 Overview

Use the download button to access the ANT162442DT-2001A2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ANT16, or try a keyword search, such as RF/Microwave Antennas

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
