TDK recommends a land pattern with a pad size of 1.3mm x 0.8mm and a spacing of 0.5mm between pads. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal issues.
While the datasheet specifies an operating temperature range of -40°C to 85°C, TDK recommends derating the component's power handling above 70°C. It's crucial to consider the thermal design and heat dissipation in high-temperature applications to ensure the component's reliability.
ANT165550ST-1003A1 is a moisture-sensitive device. To prevent damage, it's essential to store the components in a dry environment (less than 20% RH) and to follow the recommended baking and soldering procedures. TDK also recommends using a moisture barrier bag or desiccant to maintain a low humidity environment during storage and transportation.
TDK recommends a soldering profile with a peak temperature of 260°C and a dwell time of 10-30 seconds. It's essential to follow the recommended soldering profile to prevent thermal damage and ensure reliable solder joints.
While the datasheet doesn't specify vibration testing, TDK recommends ensuring that the component is securely mounted and that the PCB design can withstand the expected vibration levels. It's also essential to consider the component's mechanical stress and fatigue in high-vibration applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ANT165550ST-1003A1 Overview

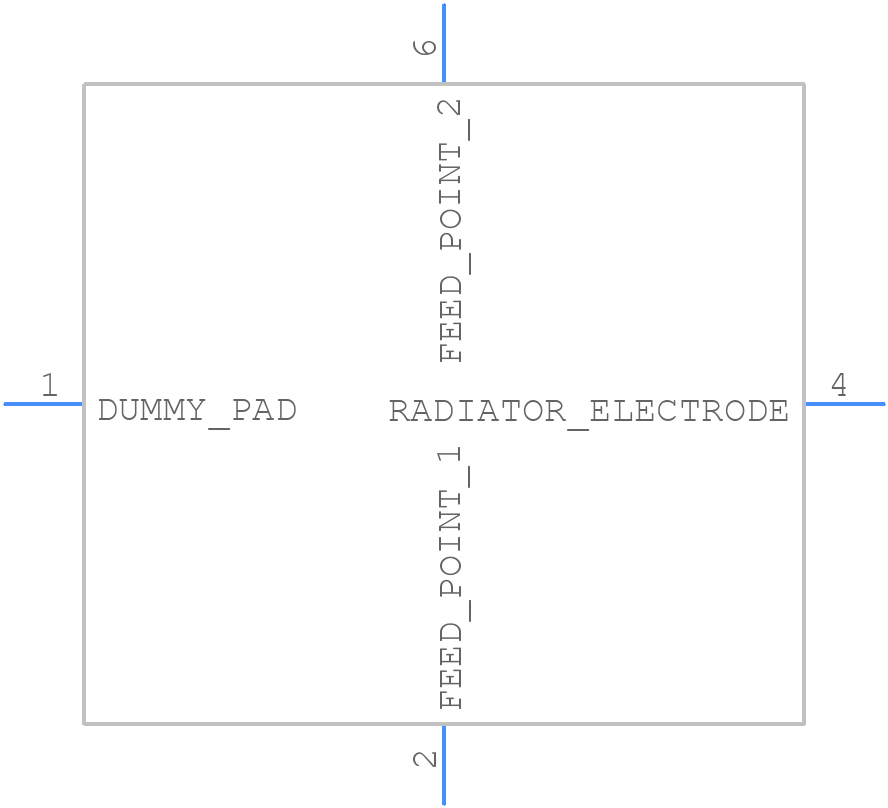

Use the download button to access the ANT165550ST-1003A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ANT16,
or try a keyword search, such as RF/Microwave Antennas
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
