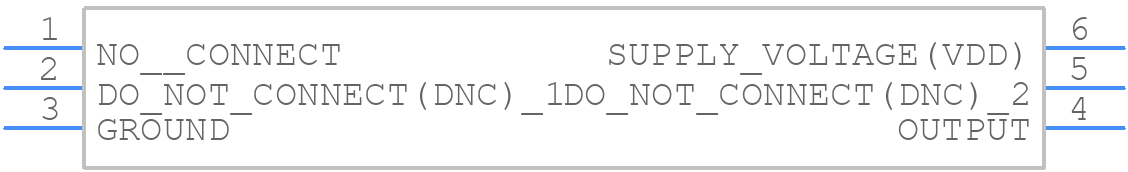

Symbol

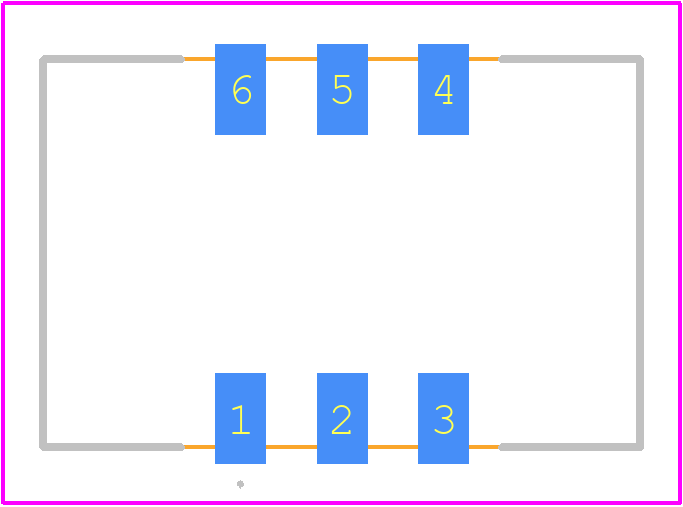

PCB Footprints

3D Models

AOC1409XAUC-20.0000C Details

The recommended termination impedance for the AOC1409XAUC-20.0000C is 15pF to 30pF. This ensures optimal signal integrity and minimizes signal reflections.
To ensure reliable startup, make sure the power supply voltage is stable and within the recommended range (1.8V to 3.3V). Also, ensure the oscillator is properly terminated and the output is not loaded excessively.
The maximum output load capacitance for the AOC1409XAUC-20.0000C is 30pF. Exceeding this value may affect the oscillator's stability and frequency accuracy.
The AOC1409XAUC-20.0000C is rated for operation up to 85°C. However, it's essential to consider the temperature coefficient of the oscillator and ensure it meets your application's requirements.
To minimize jitter and phase noise, ensure the oscillator is properly decoupled, and the power supply is clean and stable. Additionally, use a low-jitter oscillator like the AOC1409XAUC-20.0000C, which has a typical jitter of 50ps.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AOC1409XAUC-20.0000C schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AOC14, or try a keyword search, such as OCVCXO
