AOC2012VAJC-19.4400C - ABRACON

Description: Stratum 3/3E SMD oven-controlled crystal oscillator (OCXO / VCOCXO) with high stability, ultra-low phase noise and low long-term aging

Download AOC2012VAJC-19.4400C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

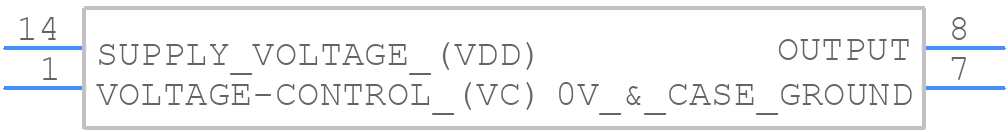

AOC2012VAJC-19.4400C - ABRACON - PCB symbol
click to zoom
PCB Footprints
AOC2012VAJC-19.4400C - ABRACON PCB footprint - Other - Other - AOC2012VAJC-19.4400C-1
click to zoom
3D Models
AOC2012VAJC-19.4400C - ABRACON - 3D model - Other - AOC2012VAJC-19.4400C-1
click to zoom

AOC2012VAJC-19.4400C Details

  • Manufacturer Part Number:

    AOC2012VAJC-19.4400C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD-14/4

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    9

  • Aging:

    0.1 PPM/FIRST YEAR

  • Control Voltage-Max:

    3.3 V

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    0.01%

  • Frequency Stability-Voltage:

    0.003 ppm

  • Input Power:

    1 W

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Frequency-Nom:

    19.44 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    13.5 pF

  • Oven Supply Voltage:

    3.3V

  • Package Equivalence Code:

    DILCC14,.5

  • Physical Dimension:

    20.32mm x 12.7mm x 11.0mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Warm-up Power:

    2.5 W

  • Warm-up Time-Max:

    3 Minute

AOC2012VAJC-19.4400C Frequently Asked Questions (FAQs)

  • The recommended termination resistance for the AOC2012VAJC-19.4400C is 1 kΩ to ensure proper signal integrity and minimize reflections.
  • The AOC2012VAJC-19.4400C is rated for operation up to 85°C, but it's recommended to derate the frequency stability and output amplitude above 70°C. Consult the datasheet for specific derating guidelines.
  • To ensure proper startup, make sure to provide a stable power supply, ensure the oscillator is properly terminated, and avoid any capacitive loading on the output. Additionally, consider adding a pull-up or pull-down resistor on the output to prevent oscillation during power-up.
  • The typical power consumption of the AOC2012VAJC-19.4400C is around 20-30 mA, depending on the output frequency and load conditions. Consult the datasheet for specific power consumption characteristics.
  • Yes, the AOC2012VAJC-19.4400C can be used in designs with multiple power domains, but ensure that the oscillator is powered from a stable, noise-free power rail. Additionally, consider using level shifters or buffers to isolate the oscillator output from other power domains.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AOC2012VAJC-19.4400C Overview

Use the download button to access the AOC2012VAJC-19.4400C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AOC20, or try a keyword search, such as OCVCXO
