Abracon recommends following the recommended PCB layout and land pattern provided in the datasheet or application notes to ensure optimal performance, minimal signal loss, and reduced EMI. A well-designed PCB layout can help minimize parasitic inductance and capacitance, ensuring the oscillator operates within its specified frequency range.
Proper termination is crucial for the oscillator's performance. Ensure that the output is terminated with a 50-ohm load, and the input is terminated with a 1-kohm resistor to prevent overdriving. Additionally, use a 0.01-uF capacitor in series with the output to filter out any high-frequency noise.
To ensure stable operation, Abracon recommends decoupling the power supply with a 10-uF capacitor in parallel with a 0.1-uF capacitor, placed as close to the oscillator as possible. This helps to filter out any noise and ripple on the power supply lines.
The AOC2522BVAUC-100.0000 has a specified frequency stability of ±100 ppm over the operating temperature range of -40°C to +85°C. However, it's essential to note that temperature changes can still affect the oscillator's frequency. For critical applications, consider using a temperature-compensated oscillator or implementing temperature compensation circuitry.
To prevent damage, store the oscillator in its original packaging or a similar ESD-protective package. Handle the device by the body, avoiding touching the pins or leads. Use an anti-static wrist strap or mat when handling the device to prevent electrostatic discharge.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AOC2522BVAUC-100.0000 Overview

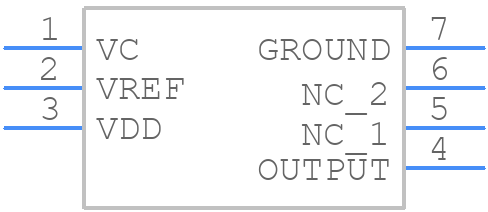

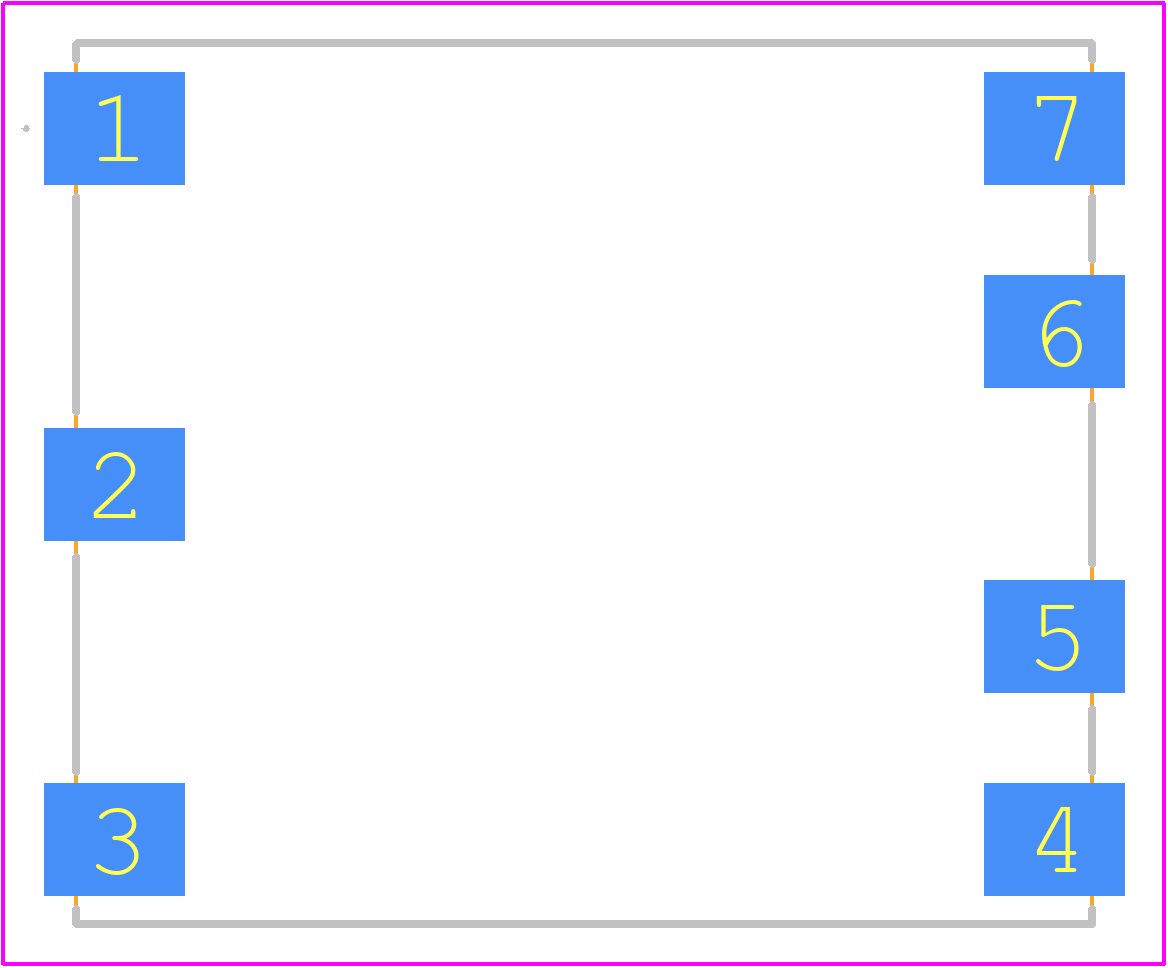

Use the download button to access the AOC2522BVAUC-100.0000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AOC25,
or try a keyword search, such as OCVCXO
