AOCJY-10.000MHZ-F footprint, schematic symbol and 3D model by ABRACON

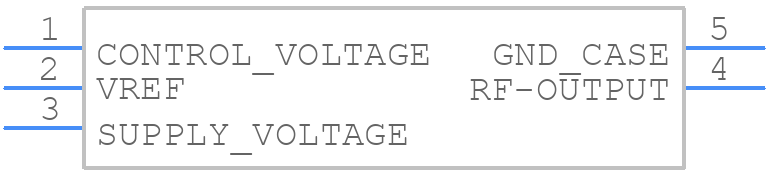

Symbol

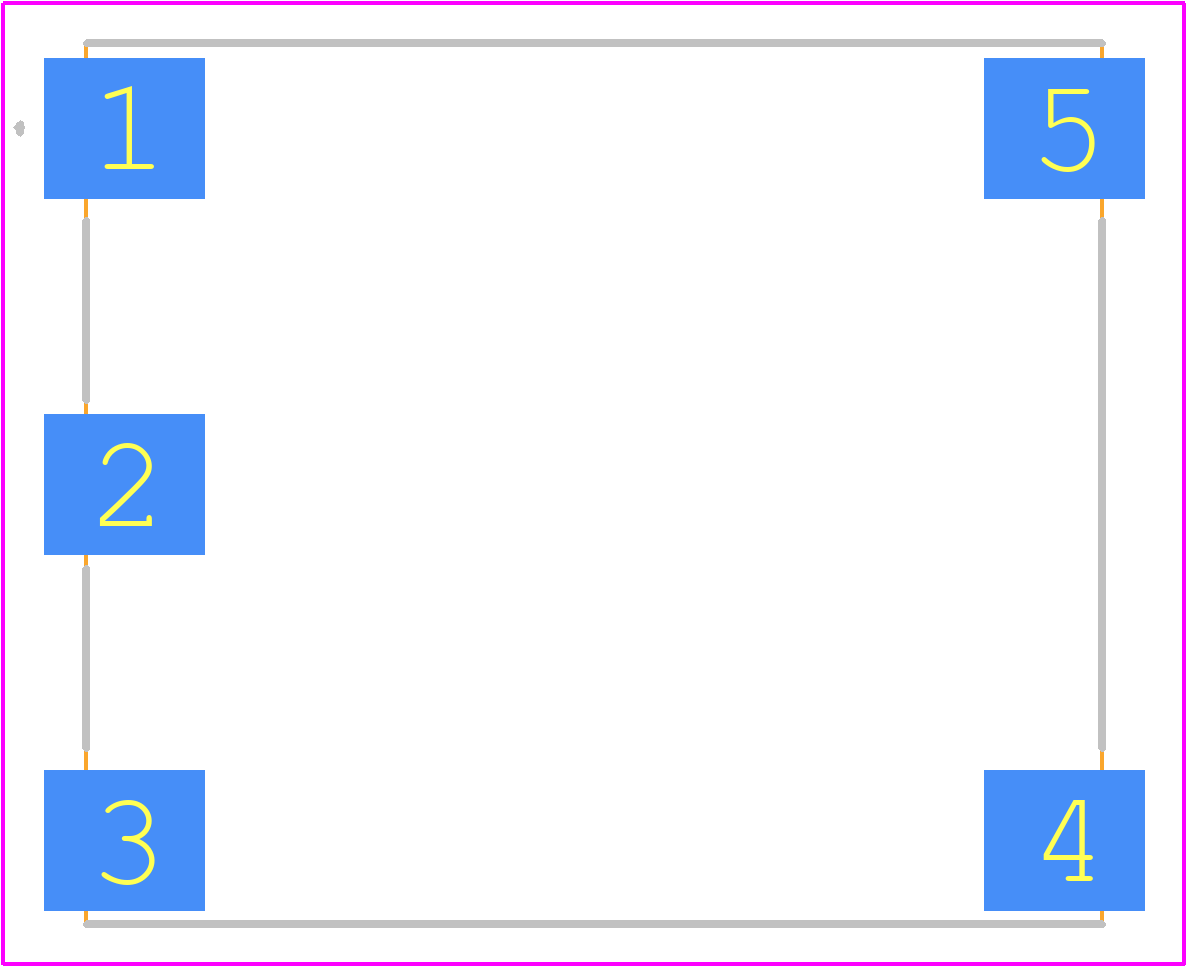

PCB Footprints

3D Models

AOCJY-10.000MHZ-F Details

Abracon recommends a peak reflow temperature of 260°C with a dwell time of 20-30 seconds. It's essential to follow the recommended soldering profile to ensure the oscillator's reliability and performance.
The AOCJY-10.000MHZ-F is rated for operation up to 85°C. While it can tolerate higher temperatures, its frequency stability and accuracy may degrade. For high-reliability applications, it's recommended to derate the operating temperature to ensure optimal performance.
Abracon provides a recommended land pattern and PCB layout guidelines in their application notes. It's essential to follow these guidelines to ensure proper oscillator operation, minimize noise, and prevent electromagnetic interference (EMI).
The AOCJY-10.000MHZ-F has a typical current consumption of 10mA. While it's not the lowest power oscillator available, it's suitable for many applications. If ultra-low power consumption is required, consider Abracon's low-power oscillator options or consult with their application engineers for guidance.
Proper decoupling and bypassing are crucial for oscillator stability and noise reduction. Abracon recommends using a 0.01uF to 0.1uF capacitor between the VCC and GND pins, and an additional 10uF to 22uF capacitor in parallel for further noise filtering.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AOCJY-10.000MHZ-F schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AOCJY, or try a keyword search, such as OCVCXO
