AOCJY-100.000MHZ-E-SW footprint, schematic symbol and 3D model by ABRACON

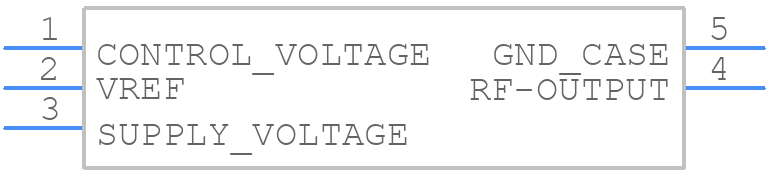

Symbol

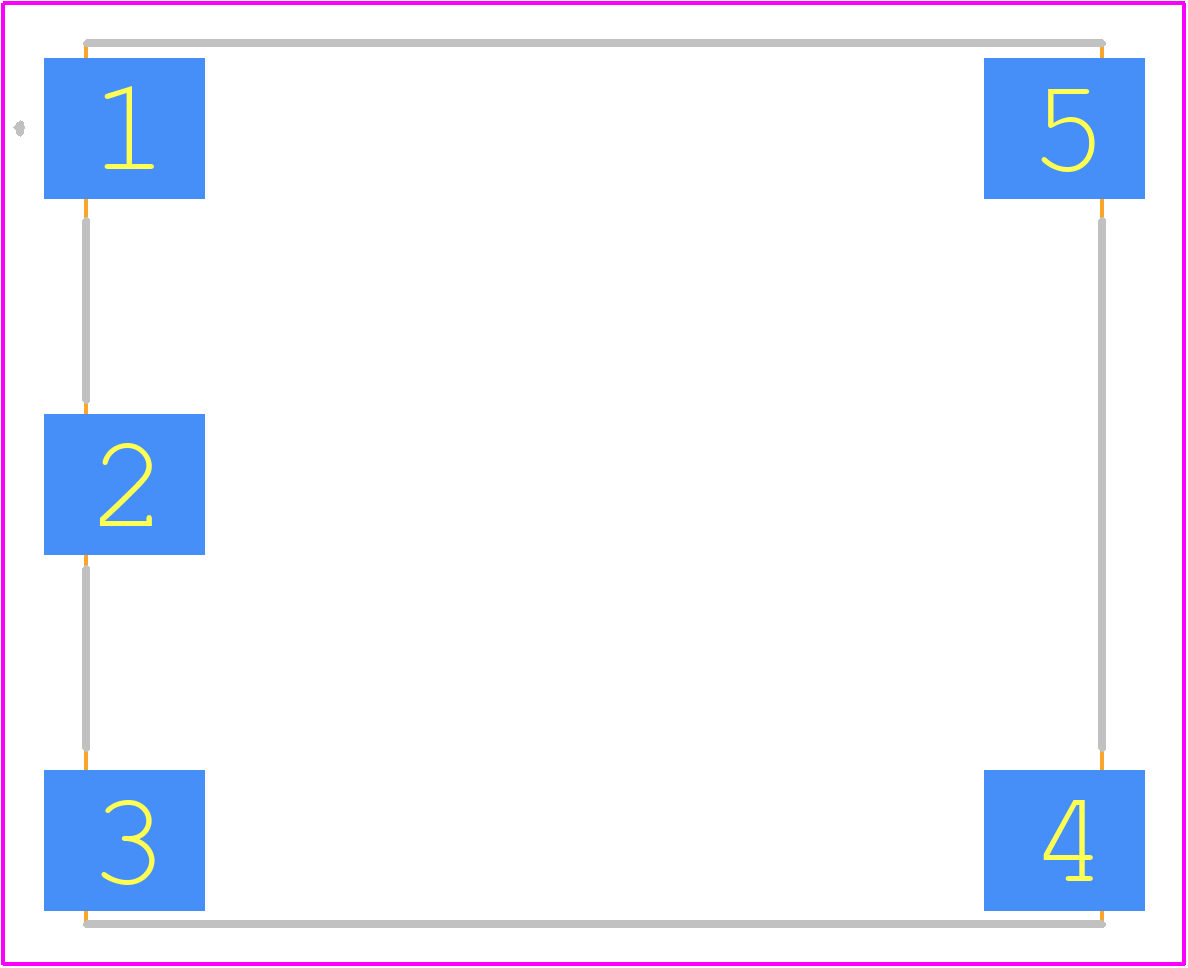

PCB Footprints

3D Models

AOCJY-100.000MHZ-E-SW Details

Abracon recommends a layout with a solid ground plane, minimal signal trace length, and a decoupling capacitor (e.g., 0.01uF) between VCC and GND to ensure optimal performance and reduce noise.
The AOCJY-100.000MHZ-E-SW is rated for operation up to 85°C, but its frequency stability may degrade at higher temperatures. For applications above 85°C, consider using a more temperature-stable oscillator or consulting with Abracon's application engineers.
Yes, but ensure that the oscillator's power supply (VCC) is connected to a stable, low-noise power domain. Isolate the oscillator from other power domains using filtering or decoupling capacitors to prevent noise coupling.
The typical start-up time for the AOCJY-100.000MHZ-E-SW is around 2-5ms, but this can vary depending on the specific application and power supply conditions.
While the AOCJY-100.000MHZ-E-SW meets general industrial standards, it may not meet the specific requirements of safety-critical applications (e.g., automotive, aerospace, medical). Consult with Abracon's application engineers or consider using oscillators specifically designed for safety-critical applications.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AOCJY-100.000MHZ-E-SW schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AOCJY, or try a keyword search, such as OCVCXO
