AOCJY-100.000MHZ-E footprint, schematic symbol and 3D model by ABRACON

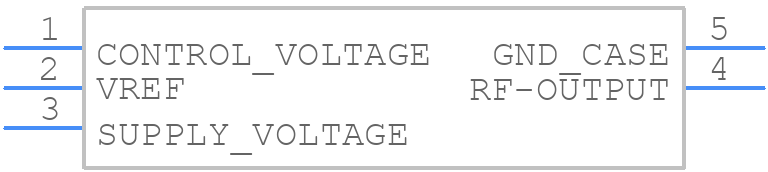

Symbol

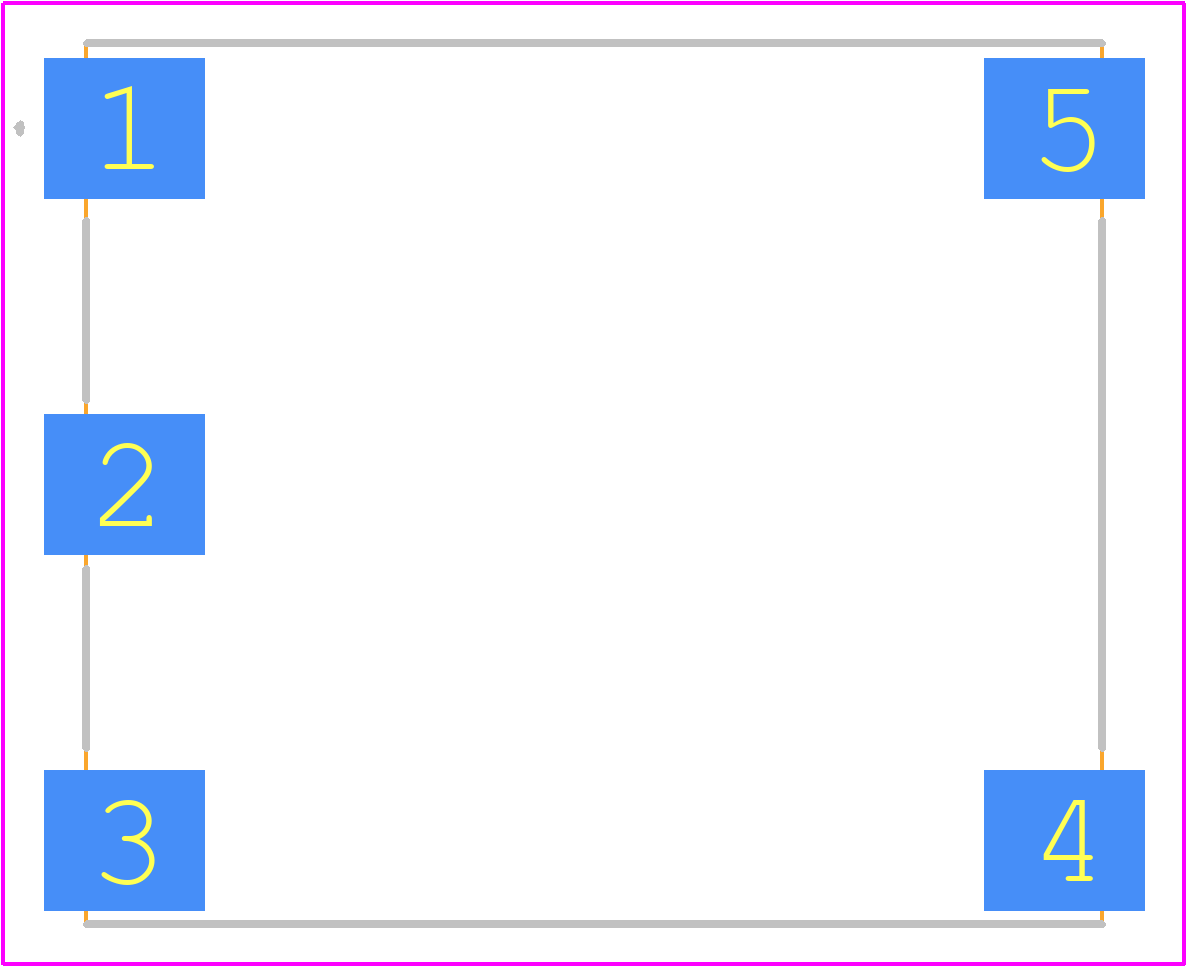

PCB Footprints

3D Models

AOCJY-100.000MHZ-E Details

Abracon recommends a soldering temperature profile with a peak temperature of 240°C to 250°C, with a dwell time of 1-2 seconds. This ensures reliable solder joints and minimizes thermal stress on the component.
The AOCJY-100.000MHZ-E oscillator is designed to handle power-up and power-down sequences without any specific requirements. However, it's recommended to ensure a monotonic power supply ramp-up and ramp-down to prevent any potential oscillation or frequency instability issues.
For optimal performance, Abracon recommends a low-impedance PCB layout with short, direct traces between the oscillator and the load. Avoid routing traces near noise sources or high-frequency signals. A ground plane underneath the oscillator can also help reduce noise and improve stability.
The AOCJY-100.000MHZ-E is rated for operation up to 85°C. While it can tolerate short-term excursions up to 100°C, prolonged exposure above 85°C may affect its long-term reliability and frequency stability. For high-temperature applications, consider Abracon's high-temperature oscillators or consult with their application engineers.
The AOCJY-100.000MHZ-E oscillator is designed to be resistant to EMI, but it's still important to follow proper PCB layout and shielding practices to minimize the impact of EMI on the oscillator's performance. Abracon recommends using a shielded enclosure and keeping the oscillator away from high-current or high-frequency sources.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AOCJY-100.000MHZ-E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AOCJY, or try a keyword search, such as OCVCXO
