AOCJY-100.000MHZ-F - ABRACON

Description: Sc-Cut Ocxo 100.000 Mhz, 3.3v, Square Wave, 25.4x22.1x12.5mm, Smd, 425ma, Temp -40 To +75‚°c, + 30ppb

Download AOCJY-100.000MHZ-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

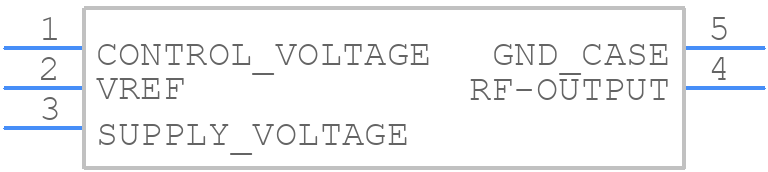

Symbol
AOCJY-100.000MHZ-F - ABRACON - PCB symbol
click to zoom

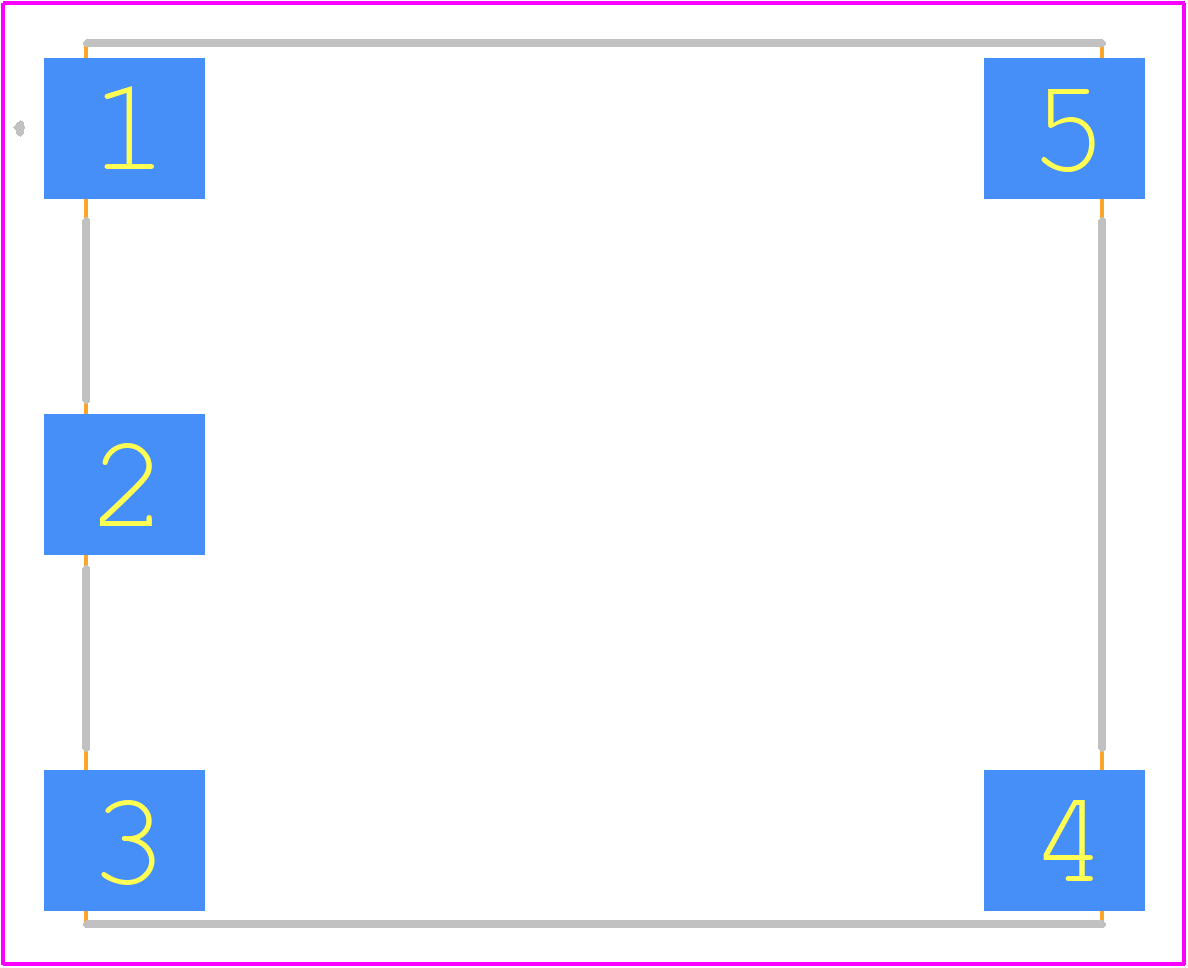

PCB Footprints
AOCJY-100.000MHZ-F - ABRACON PCB footprint - Other - Other - AOCJY
click to zoom
3D Models
AOCJY-100.000MHZ-F - ABRACON - 3D model - Other - AOCJY
click to zoom

AOCJY-100.000MHZ-F Details

  • Manufacturer Part Number:

    AOCJY-100.000MHZ-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SMD, 5 PIN

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    32 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    9

  • Additional Feature:

    TRAY

  • Aging:

    0.1 PPM/YEAR

  • Control Voltage-Max:

    3.3 V

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    0.03%

  • Frequency Stability-Voltage:

    0.02 ppm

  • Input Power:

    1.4 W

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    5

  • Operating Frequency-Max:

    100 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Frequency-Nom:

    100 MHz

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    15 pF

  • Oven Supply Voltage:

    3.3V

  • Package Body Material:

    METAL

  • Package Equivalence Code:

    DILCC5/6,1,350

  • Physical Dimension:

    25.4mm x 22.1mm x 12.7mm

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Warm-up Power:

    3.6 W

  • Warm-up Time-Max:

    3 Minute

AOCJY-100.000MHZ-F Frequently Asked Questions (FAQs)

  • Abracon recommends a peak reflow temperature of 260°C with a dwell time of 20-30 seconds. A slow ramp-up and cool-down is also recommended to prevent thermal shock.
  • Yes, AOCJY-100.000MHZ-F is designed to withstand high-vibration environments. However, it's recommended to follow Abracon's guidelines for vibration testing and to consult with Abracon's application engineers for specific requirements.
  • AOCJY-100.000MHZ-F is rated for operation from -40°C to +85°C. However, it's recommended to derate the frequency tolerance and stability specifications at extreme temperatures.
  • Yes, AOCJY-100.000MHZ-F is compatible with lead-free soldering processes. Abracon recommends following the IPC J-STD-020D.1 standard for lead-free soldering.
  • Abracon recommends storing AOCJY-100.000MHZ-F in a dry, cool place with a relative humidity of 50% or less. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AOCJY-100.000MHZ-F Overview

Use the download button to access the AOCJY-100.000MHZ-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AOCJY, or try a keyword search, such as OCVCXO
