AOCJY-12.800MHZ-E footprint, schematic symbol and 3D model by ABRACON

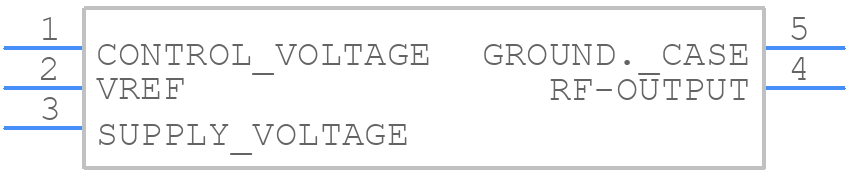

Symbol

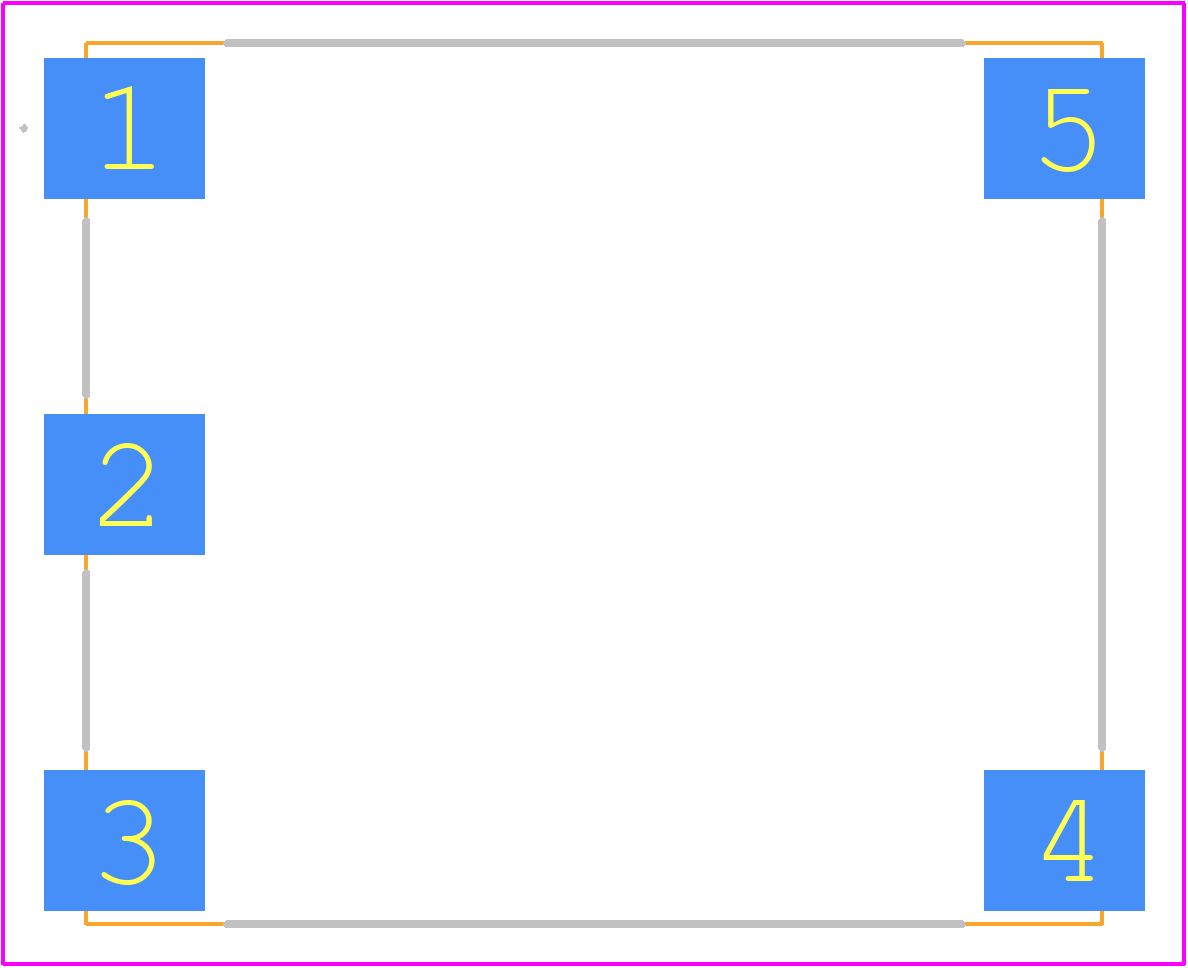

PCB Footprints

3D Models

AOCJY-12.800MHZ-E Details

Abracon recommends a symmetrical PCB layout with a solid ground plane, and the crystal oscillator should be placed as close as possible to the microcontroller or IC. A minimum of 10 mils (0.25 mm) clearance around the device is recommended.
Abracon recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the PCB to protect the crystal oscillator from electrostatic discharge. Additionally, handling the device with an anti-static wrist strap or mat is recommended.
The AOCJY-12.800MHZ-E has an operating temperature range of -40°C to +85°C, but it's recommended to operate within -20°C to +70°C for optimal performance and stability.
Yes, the AOCJY-12.800MHZ-E is designed to withstand vibrations up to 10G peak acceleration, but it's recommended to consult with Abracon's application engineers for specific vibration requirements and to ensure the device is properly mounted and secured.
Abracon recommends using a 10nF to 100nF decoupling capacitor between the power supply pins (VCC and GND) to ensure stable operation and reduce noise.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AOCJY-12.800MHZ-E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AOCJY, or try a keyword search, such as OCVCXO
