AOCJY-16.384MHZ - ABRACON

Description: 16.384MHz VCOCXO Sine Wave Oscillator 3.3V Standby (Power Down) 6-SMD, No Lead, 5 Leads

Download AOCJY-16.384MHZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

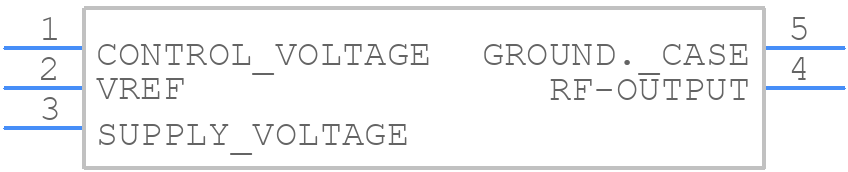

AOCJY-16.384MHZ - ABRACON - PCB symbol
click to zoom
PCB Footprints

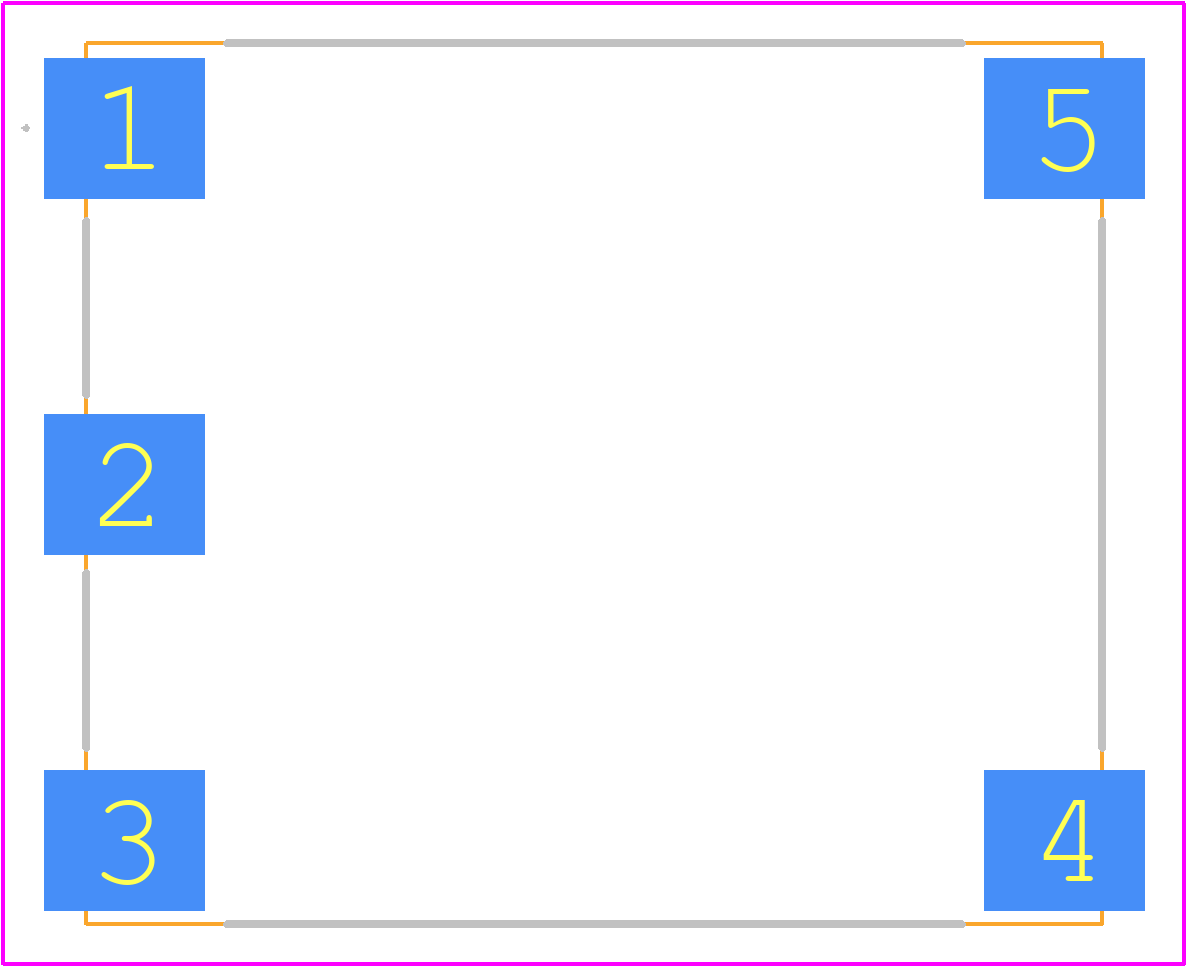

AOCJY-16.384MHZ - ABRACON PCB footprint - Other - Other - AOCJY-16.384MHZ-1
click to zoom
3D Models
AOCJY-16.384MHZ - ABRACON - 3D model - Other - AOCJY-16.384MHZ-1
click to zoom

AOCJY-16.384MHZ Details

  • Manufacturer Part Number:

    AOCJY-16.384MHZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SMD, 5 PIN

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    32 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    10

  • Additional Feature:

    TRAY

  • Aging:

    0.1 PPM/YEAR

  • Control Voltage-Max:

    3.3 V

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    0.005%

  • Frequency Stability-Voltage:

    0.02 ppm

  • Input Power:

    1.4 W

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    5

  • Operating Frequency-Max:

    100 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Frequency-Nom:

    16.384 MHz

  • Operating Temperature-Max:

    50 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    15 pF

  • Oven Supply Voltage:

    3.3V

  • Package Body Material:

    METAL

  • Package Equivalence Code:

    DILCC5/6,1,350

  • Physical Dimension:

    25.4mm x 22.1mm x 12.7mm

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Warm-up Power:

    3.6 W

  • Warm-up Time-Max:

    3 Minute

AOCJY-16.384MHZ Frequently Asked Questions (FAQs)

  • The recommended termination resistance is 1 kΩ to ensure proper signal integrity and minimize reflections.
  • While the AOCJY-16.384MHZ is rated for industrial temperature range (-40°C to 85°C), it's essential to consider the specific application and ensure the oscillator can operate within the desired temperature range. Consult with Abracon Corporation or a qualified engineer for customized solutions.
  • Use a 0.01 μF to 0.1 μF ceramic capacitor in parallel with a 10 μF to 22 μF electrolytic capacitor to decouple the power supply. Place the capacitors as close to the oscillator as possible to minimize noise and ensure stable operation.
  • The typical power consumption of the AOCJY-16.384MHZ is around 10 mA to 20 mA, depending on the specific application and operating conditions. Consult the datasheet for more information.
  • Yes, the AOCJY-16.384MHZ is designed to minimize electromagnetic interference (EMI). However, it's essential to follow proper PCB design and layout guidelines, such as using a ground plane, minimizing trace lengths, and using shielding if necessary, to ensure low EMI emissions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AOCJY-16.384MHZ Overview

Use the download button to access the AOCJY-16.384MHZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AOCJY, or try a keyword search, such as OCVCXO
