AOCJY-20.000MHZ-F footprint, schematic symbol and 3D model by ABRACON

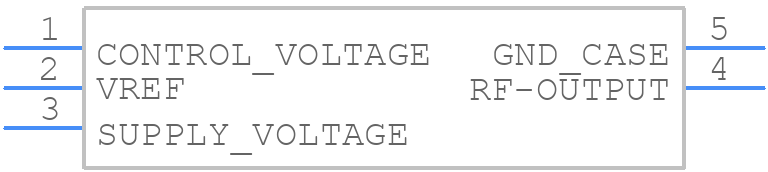

Symbol

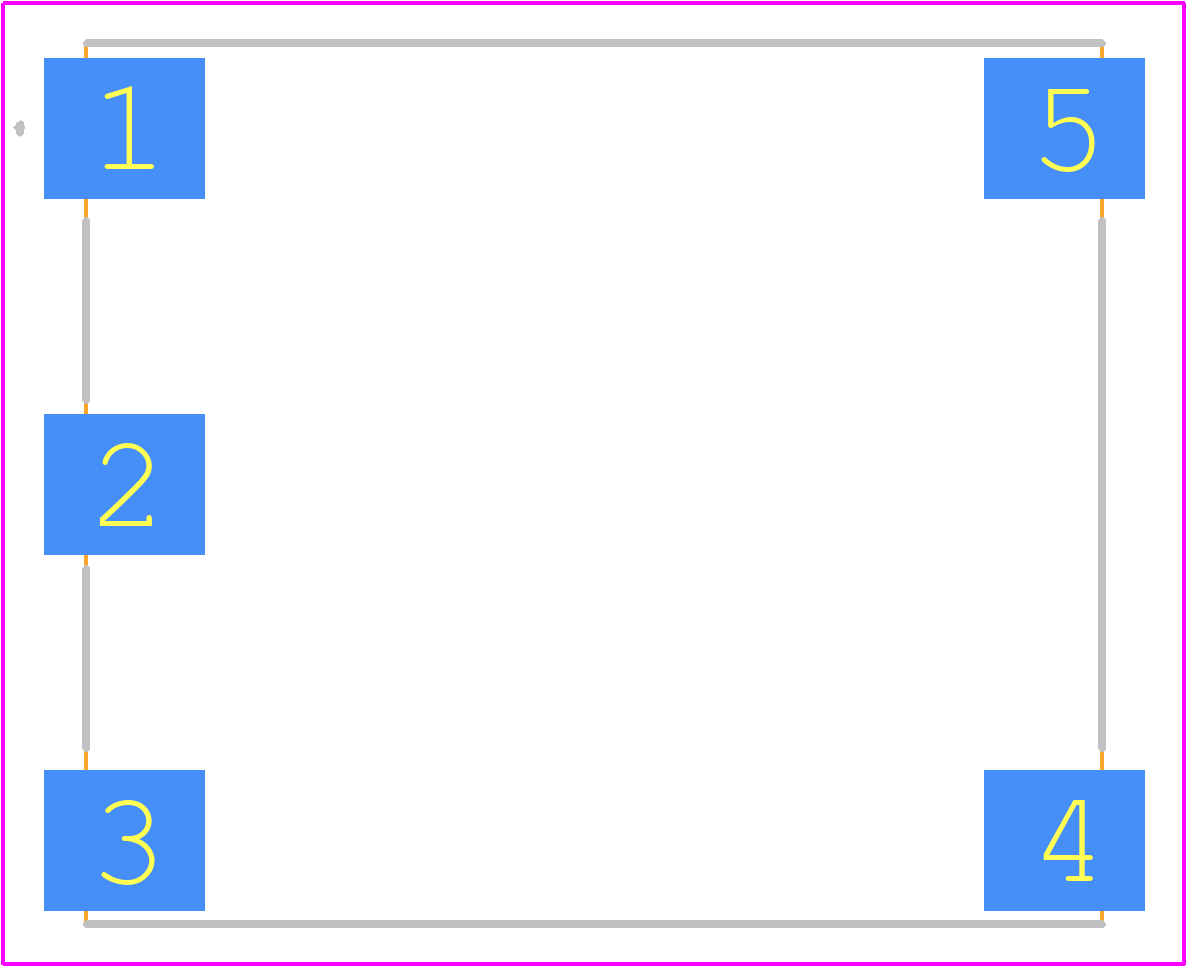

PCB Footprints

3D Models

AOCJY-20.000MHZ-F Details

Abracon recommends a soldering temperature profile with a peak temperature of 240°C to 250°C, with a dwell time of 1-2 seconds. This ensures reliable solder joints and minimizes thermal stress on the component.
The AOCJY-20.000MHZ-F oscillator is designed to start oscillating within 10ms of power-up, and it will stop oscillating within 10ms of power-down. The oscillator is also designed to be immune to power supply noise and voltage drops.
Abracon recommends a land pattern with a minimum pad size of 1.5mm x 1.5mm, and a PCB layout that minimizes signal traces and vias to reduce noise and signal degradation. A recommended PCB layout and land pattern can be found in the Abracon application note AN-04.
The AOCJY-20.000MHZ-F oscillator is designed to operate in a temperature range of -40°C to 85°C, and can withstand humidity up to 85% RH. However, for harsh environmental conditions, Abracon recommends using a custom-designed oscillator or consulting with Abracon's application engineers for a customized solution.
The typical lead time for AOCJY-20.000MHZ-F is 8-12 weeks, and the minimum order quantity (MOQ) is 1,000 pieces. However, lead times and MOQ may vary depending on the region and distribution channel.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AOCJY-20.000MHZ-F schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AOCJY, or try a keyword search, such as OCVCXO
