AOCJY-20.000MHZ footprint, schematic symbol and 3D model by ABRACON

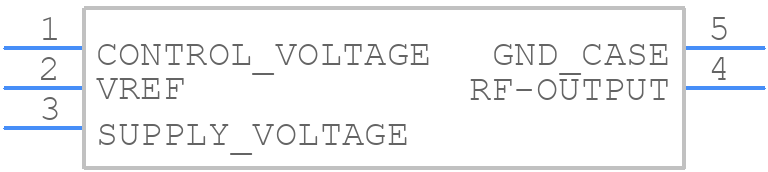

Symbol

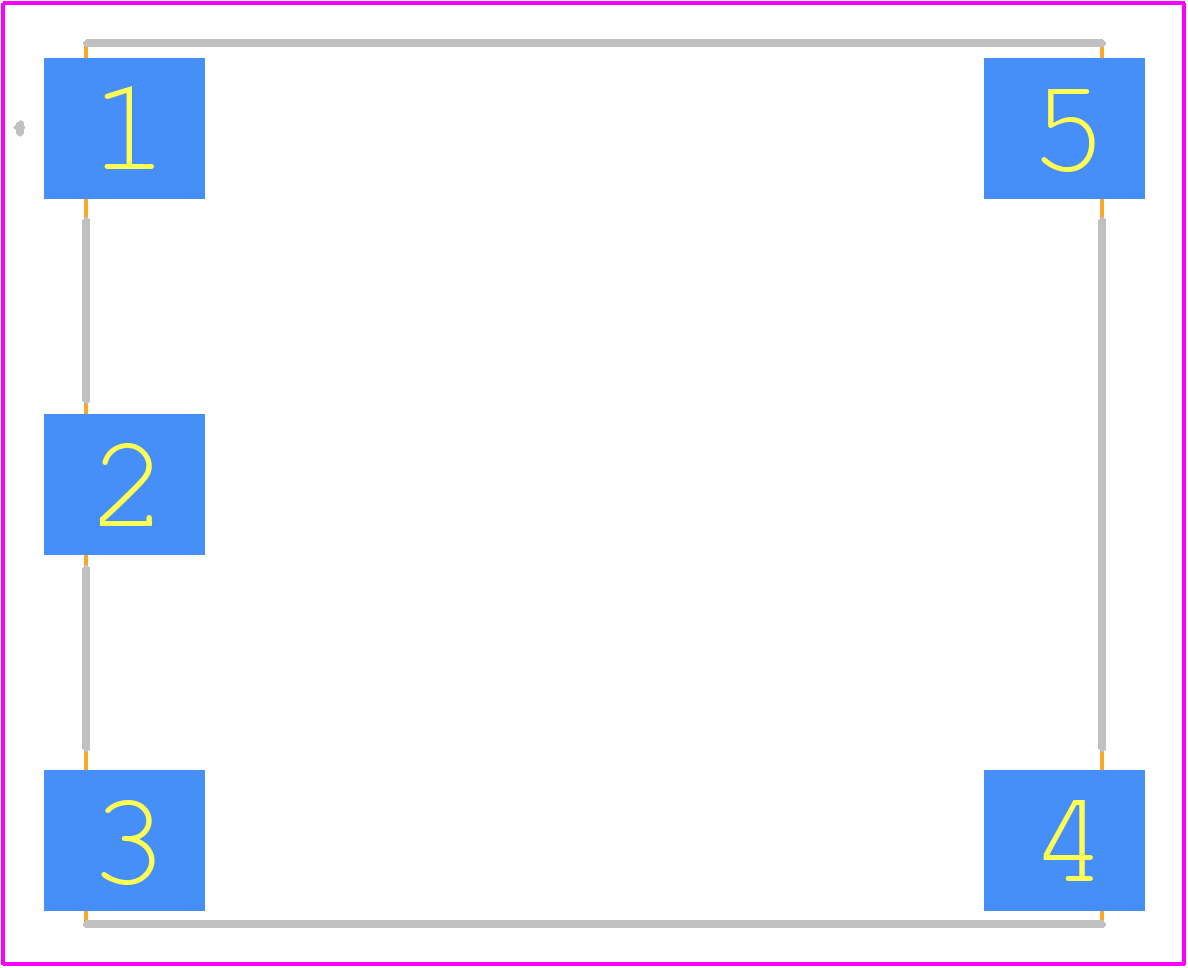

PCB Footprints

3D Models

AOCJY-20.000MHZ Details

The recommended termination resistance is 1 kΩ to ensure proper signal integrity and minimize reflections.
While the AOCJY-20.000MHZ is rated for industrial temperature range (-40°C to 85°C), it's essential to consider the specific application and ensure the oscillator is properly derated for extreme temperatures to maintain reliability.
Use a 0.01 μF to 0.1 μF decoupling capacitor between the VCC pin and GND pin, and place it as close to the oscillator as possible to minimize noise and ensure stable operation.
The typical start-up time is around 2-5 ms, but this can vary depending on the specific application and power supply conditions.
Yes, but ensure that the oscillators are properly isolated from each other to prevent frequency pulling or interference. Use separate power supply lines, decoupling capacitors, and consider adding shielding or guard rings to minimize crosstalk.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AOCJY-20.000MHZ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AOCJY, or try a keyword search, such as OCVCXO
