Abracon recommends a layout with a solid ground plane, minimal signal trace length, and a decoupling capacitor (e.g., 10nF) between VCC and GND to ensure stable operation and minimize jitter.
The AOCJY-40.000MHZ-E-SW is rated for operation up to 85°C, but its frequency stability may degrade above 70°C. For high-reliability applications, consider using a more temperature-stable oscillator or implementing thermal management measures.
Yes, but ensure that the oscillator's power supply (VCC) is connected to a stable, low-noise power domain. Isolate the oscillator from other power domains using filtering or decoupling capacitors to prevent noise coupling and ensure reliable operation.
The typical start-up time for the AOCJY-40.000MHZ-E-SW is around 2-5 ms, but this can vary depending on the specific application and power supply conditions. Ensure that your design allows for sufficient start-up time to ensure reliable oscillator operation.
The AOCJY-40.000MHZ-E-SW oscillator is designed to be relatively immune to power supply noise and voltage drops, but it's still important to ensure a stable power supply with minimal noise and ripple. Consider using a low-dropout regulator (LDO) or a power supply filter to minimize the impact of power supply noise on oscillator performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AOCJY-40.000MHZ-E-SW Overview

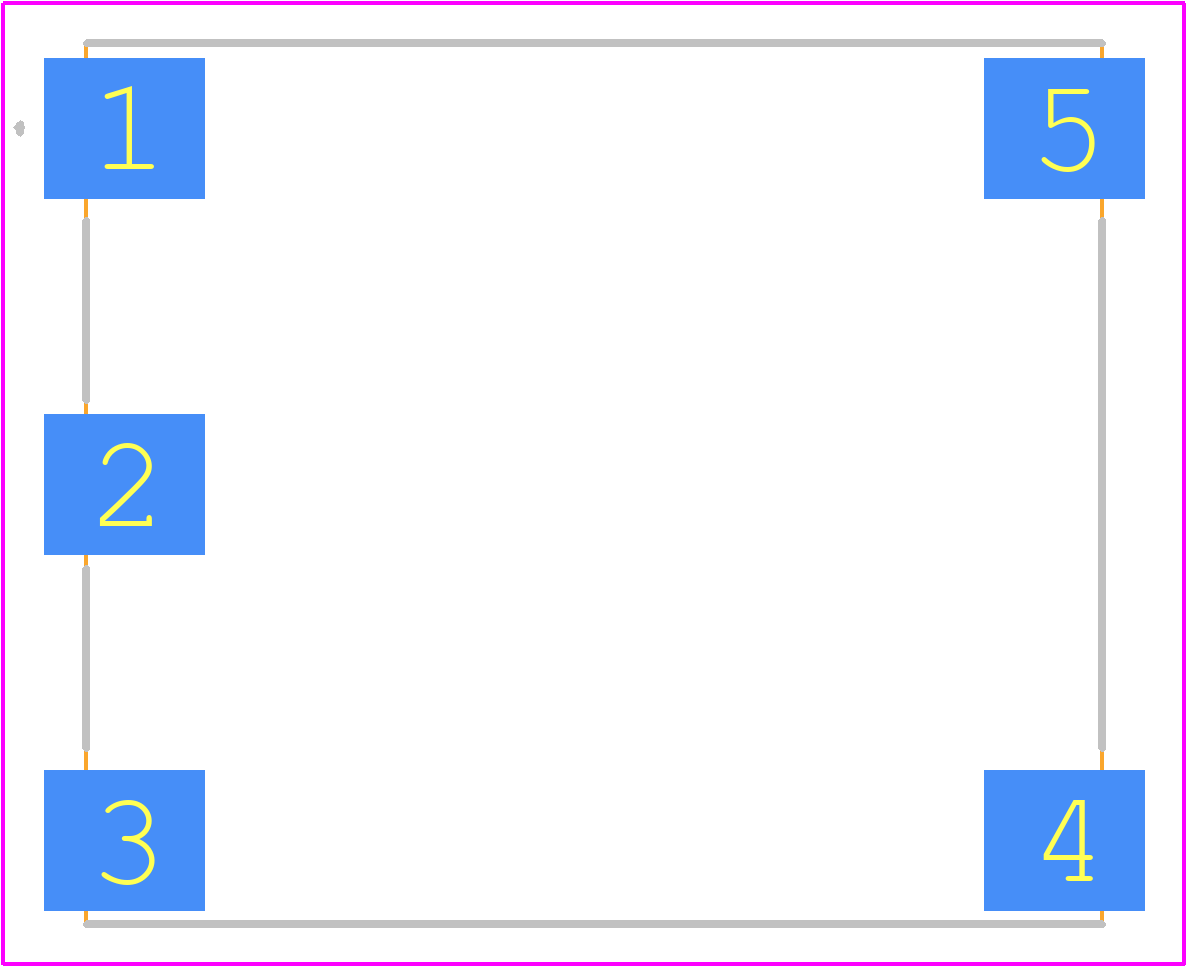

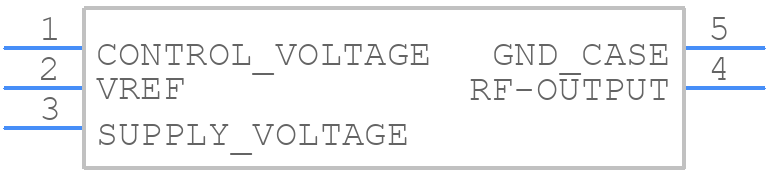

Use the download button to access the AOCJY-40.000MHZ-E-SW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AOCJY,
or try a keyword search, such as OCVCXO
