AOCJY2-10.000MHZ-E-SW footprint, schematic symbol and 3D model by ABRACON

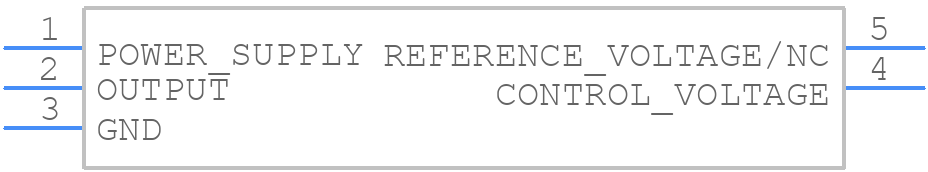

Symbol

PCB Footprints

3D Models

AOCJY2-10.000MHZ-E-SW Details

Abracon recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. It's essential to follow the recommended soldering profile to prevent damage to the crystal oscillator.
To ensure reliable startup, Abracon recommends a power-up ramp time of 1 ms or slower, and a power supply voltage of 1.8V to 3.3V. Additionally, ensure the oscillator is properly decoupled with a 0.01 μF capacitor between VCC and GND.
The AOCJY2-10.000MHZ-E-SW has an operating temperature range of -40°C to +85°C. However, it's essential to note that the oscillator's frequency stability and accuracy may degrade at extreme temperatures.
The AOCJY2-10.000MHZ-E-SW is a fixed-frequency oscillator, and its frequency cannot be adjusted. If you need a different frequency, you'll need to select a different part number or consider using a programmable oscillator.
The typical current consumption of the AOCJY2-10.000MHZ-E-SW is 10 mA. However, this value may vary depending on the specific application and operating conditions.
