AOCJY2-10.000MHZ-F-SW - ABRACON

Description: 10 MHz VCOCXO Sine Wave Oscillator 3.3V - 6-DIP (0.600", 15.24mm), 5 Leads

Download AOCJY2-10.000MHZ-F-SW Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AOCJY2-10.000MHZ-F-SW model

Email notifications will be applied after download.

Send part feedback

Symbol

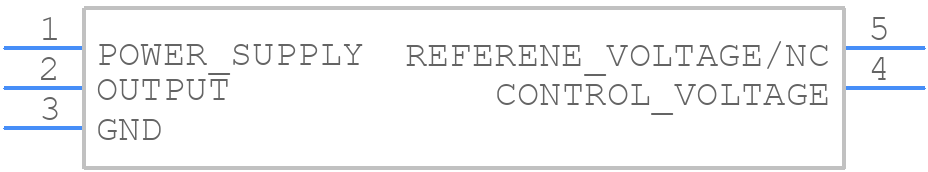

AOCJY2-10.000MHZ-F-SW - ABRACON - PCB symbol

PCB Footprints

AOCJY2-10.000MHZ-F-SW - ABRACON PCB footprint - Other - Other - AOCJY2-10.000MHZ-F-SW

3D Models

AOCJY2-10.000MHZ-F-SW - ABRACON - 3D model - Other - AOCJY2-10.000MHZ-F-SW

Datasheet Download Datasheet
Stock & Prices Price & Stock for AOCJY2-10.000MHZ-F-SW
Part Number AOCJY2-10.000MHZ-F-SW
Manufacturer ABRACON
Pin Count 5
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - AOCJY2-10.000MHZ-F-SW
Released Date May 4, 2023
Last Modified Date May 4, 2023 6:26 AM UTC
Pinout / Pin List Click Here (Member Only)

AOCJY2-10.000MHZ-F-SW Details

Manufacturer Part Number:
AOCJY2-10.000MHZ-F-SW
Rohs Code:
Yes
Part Life Cycle Code:
Active
Factory Lead Time:
32 Weeks
Manufacturer:
Abracon Corporation
Mounting Feature:
THROUGH HOLE MOUNT
Number of Terminals:
5
Operating Frequency-Max:
100 MHz
Operating Frequency-Min:
10 MHz
Operating Frequency-Nom:
10 MHz
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
SINE
Output Impedance:
1000 Ω
Package Body Material:
METAL
Package Equivalence Code:
DIP5(UNSPEC)
Qualification Status:
Not Qualified
Supply Voltage-Max:
3.465 V
Supply Voltage-Min:
3.135 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
NO

AOCJY2-10.000MHZ-F-SW Frequently Asked Questions (FAQs)

The recommended soldering temperature for AOCJY2-10.000MHZ-F-SW is 260°C (500°F) for a maximum of 10 seconds.
Yes, AOCJY2-10.000MHZ-F-SW is compatible with lead-free soldering and is RoHS compliant.
The operating temperature range for AOCJY2-10.000MHZ-F-SW is -40°C to +85°C (-40°F to +185°F).
Yes, AOCJY2-10.000MHZ-F-SW is designed to withstand high-vibration environments and is suitable for use in applications with vibration levels up to 20G.
The recommended storage temperature and humidity for AOCJY2-10.000MHZ-F-SW is -40°C to +85°C (-40°F to +185°F) and 60% relative humidity or less.
