AOCJY2-10.000MHZ - ABRACON

Description: 10 MHz VCOCXO CMOS Oscillator 3.3V Standby (Power Down) 6-DIP (0.600", 15.24mm), 5 Leads

Download AOCJY2-10.000MHZ Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AOCJY2-10.000MHZ model

Email notifications will be applied after download.

Send part feedback

Symbol

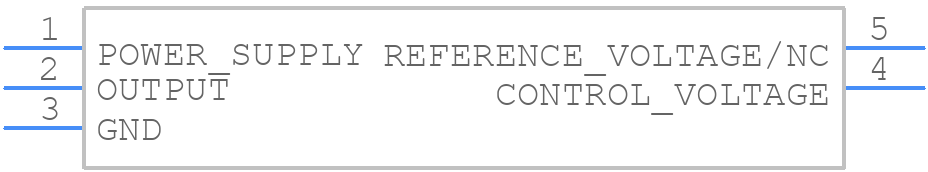

AOCJY2-10.000MHZ - ABRACON - PCB symbol

PCB Footprints

AOCJY2-10.000MHZ - ABRACON PCB footprint - Other - Other - AOCJY2-10.000MHZ-4

3D Models

AOCJY2-10.000MHZ - ABRACON - 3D model - Other - AOCJY2-10.000MHZ-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for AOCJY2-10.000MHZ
Part Number AOCJY2-10.000MHZ
Manufacturer ABRACON
Pin Count 5
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - AOCJY2-10.000MHZ-4
Released Date May 3, 2023
Last Modified Date May 4, 2023 6:26 AM UTC
Pinout / Pin List Click Here (Member Only)

AOCJY2-10.000MHZ Details

Manufacturer Part Number:
AOCJY2-10.000MHZ
Rohs Code:
Yes
Part Life Cycle Code:
Active
Factory Lead Time:
32 Weeks
Manufacturer:
Abracon Corporation
Mounting Feature:
THROUGH HOLE MOUNT
Number of Terminals:
5
Operating Frequency-Max:
100 MHz
Operating Frequency-Min:
10 MHz
Operating Frequency-Nom:
10 MHz
Operating Temperature-Max:
50 °C
Oscillator Type:
CMOS
Package Body Material:
METAL
Package Equivalence Code:
DIP5(UNSPEC)
Qualification Status:
Not Qualified
Supply Voltage-Max:
3.465 V
Supply Voltage-Min:
3.135 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
NO

AOCJY2-10.000MHZ Frequently Asked Questions (FAQs)

The operating temperature range of the AOCJY2-10.000MHZ is -40°C to +85°C.
Yes, the AOCJY2-10.000MHZ is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
The typical power consumption of the AOCJY2-10.000MHZ is 10mA, with a maximum current consumption of 20mA.
Yes, the AOCJY2-10.000MHZ is designed to withstand high-vibration environments, with a vibration sensitivity of 10g peak acceleration.
The recommended storage temperature range for the AOCJY2-10.000MHZ is -40°C to +125°C.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

AOCJY2-10.000MHZ Overview

Use the download button to access the AOCJY2-10.000MHZ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AOCJY, or try a keyword search, such as OCVCXO

Parts related to AOCJY2-10.000MHZ
