AOCJY2-100.000MHZ-E-SW footprint, schematic symbol and 3D model by ABRACON

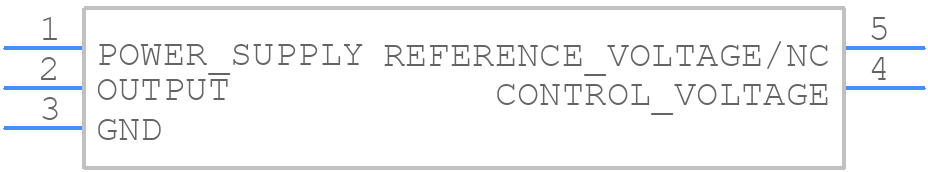

Symbol

PCB Footprints

3D Models

AOCJY2-100.000MHZ-E-SW Details

Abracon recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. It's essential to follow the recommended soldering profile to prevent damage to the oscillator.
The AOCJY2-100.000MHZ-E-SW oscillator is designed to operate within a temperature range of -40°C to 85°C. While it can tolerate high temperatures, its frequency stability may degrade above 70°C. It's crucial to consider thermal management and heat dissipation in high-temperature applications.
Abracon provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper signal integrity, minimize noise, and prevent electromagnetic interference (EMI).
While the AOCJY2-100.000MHZ-E-SW oscillator is designed to be rugged, it's still susceptible to vibration and shock. Abracon recommends following their guidelines for vibration and shock testing to ensure the oscillator's reliability in harsh environments.
The lead time and minimum order quantity for AOCJY2-100.000MHZ-E-SW may vary depending on the region, distributor, and availability. It's best to check with authorized distributors or Abracon's sales team for the most up-to-date information.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AOCJY2-100.000MHZ-E-SW schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AOCJY, or try a keyword search, such as OCVCXO
