AOCJY3-10.000MHZ - ABRACON

Description: 10 MHz VCOCXO CMOS Oscillator 3.3V Standby (Power Down) 6-DIP (0.750", 19.05mm), 5 Leads

Download AOCJY3-10.000MHZ Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AOCJY3-10.000MHZ model

Email notifications will be applied after download.

Send part feedback

Symbol

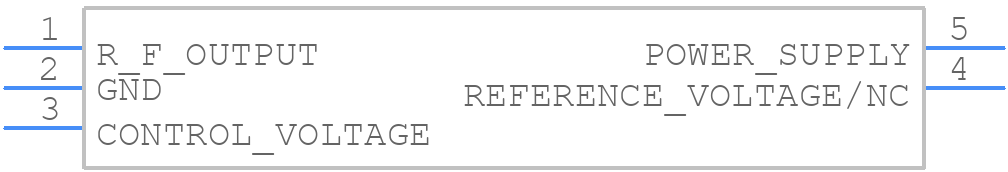

AOCJY3-10.000MHZ - ABRACON - PCB symbol

PCB Footprints

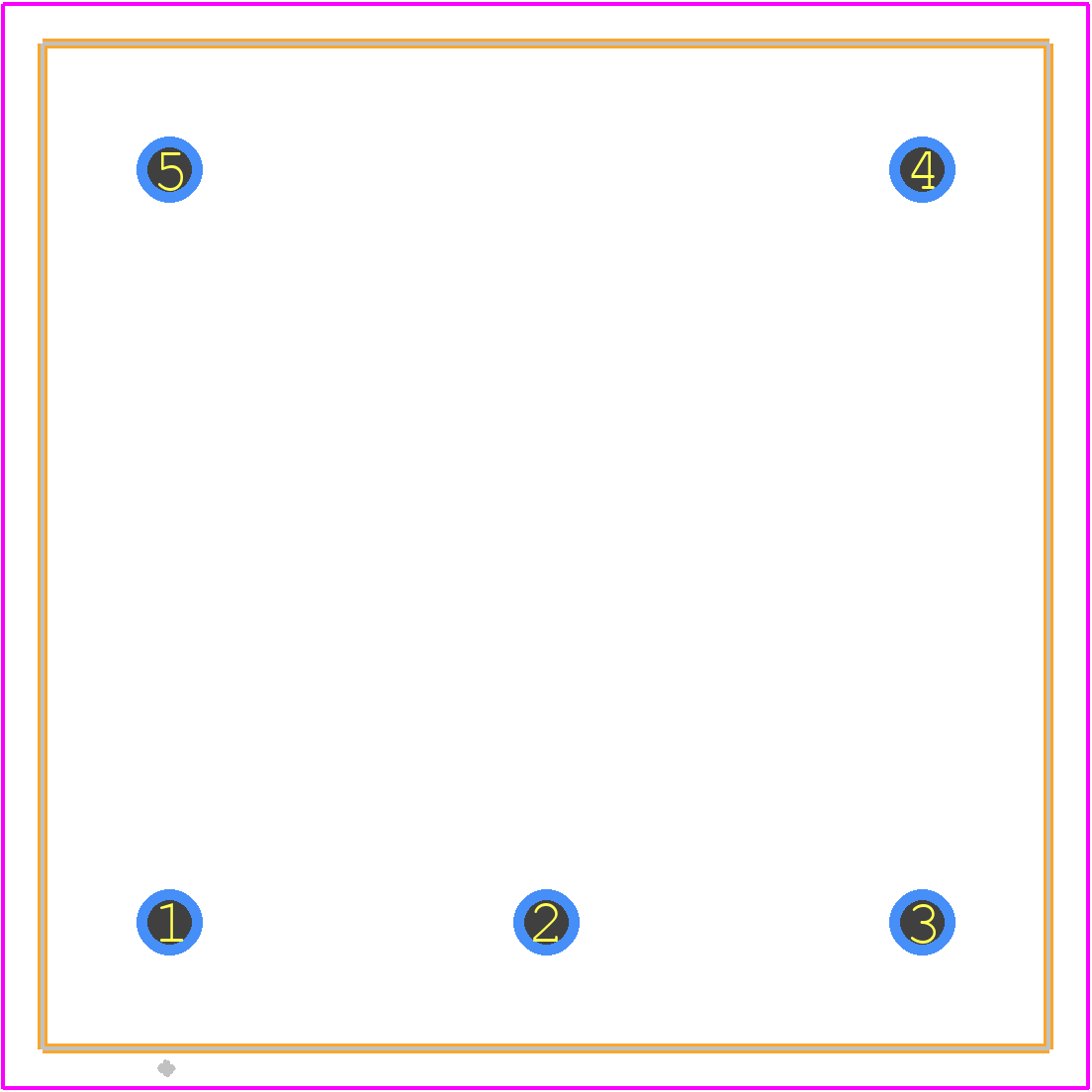

AOCJY3-10.000MHZ - ABRACON PCB footprint - Other - Other - AOCJY3-10.000MHz

3D Models

AOCJY3-10.000MHZ - ABRACON - 3D model - Other - AOCJY3-10.000MHz

Datasheet Download Datasheet
Stock & Prices Price & Stock for AOCJY3-10.000MHZ
Part Number AOCJY3-10.000MHZ
Manufacturer ABRACON
Pin Count 5
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - AOCJY3-10.000MHz
Released Date Apr 29, 2019
Last Modified Date Jan 16, 2026 8:43 AM UTC
Pinout / Pin List Click Here (Member Only)

AOCJY3-10.000MHZ Details

Manufacturer Part Number:
AOCJY3-10.000MHZ
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT PACKAGE-5/4
Factory Lead Time:
32 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
7
Additional Feature:
TRAY
Aging:
0.1 PPM/FIRST YEAR
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
0.005%
Frequency Stability-Voltage:
0.002 ppm
Input Power:
1.2 W
Mounting Feature:
THROUGH HOLE MOUNT
Number of Terminals:
5
Operating Frequency-Nom:
10 MHz
Operating Temperature-Max:
50 °C
Oscillator Type:
CMOS
Output Load:
15 pF
Oven Supply Voltage:
3.3V
Physical Dimension:
25.4mm x 25.4mm x 13.0mm
Supply Voltage-Max:
3.46 V
Supply Voltage-Min:
3.13 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
NO
Warm-up Power:
3.6 W
Warm-up Time-Max:
3 Minute

AOCJY3-10.000MHZ Frequently Asked Questions (FAQs)

The operating temperature range of the AOCJY3-10.000MHZ is -40°C to +85°C.
Yes, the AOCJY3-10.000MHZ is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
The typical power consumption of the AOCJY3-10.000MHZ is around 10-20mA, depending on the specific application and operating conditions.
Yes, the AOCJY3-10.000MHZ is designed to withstand high-vibration environments, with a vibration sensitivity of 10g peak acceleration.
Yes, the AOCJY3-10.000MHZ meets the requirements for automotive applications, including AEC-Q200 qualification and PPAP documentation availability.
