AOCJY3-100.000MHZ-F - ABRACON

Description: Oscillator VC-OCXO 100MHz ‚±0.03ppm (Stability) 15pF CMOS 55% 3.3V 5-Pin Thru-Hole Tray

Download AOCJY3-100.000MHZ-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

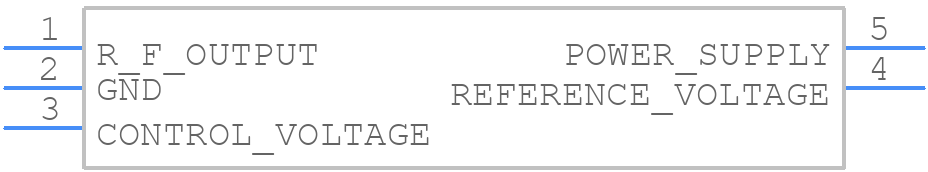

AOCJY3-100.000MHZ-F - ABRACON - PCB symbol
click to zoom
PCB Footprints
AOCJY3-100.000MHZ-F - ABRACON PCB footprint - Other - Other - AOCJY3-100.000MHZ-F
click to zoom
3D Models
AOCJY3-100.000MHZ-F - ABRACON - 3D model - Other - AOCJY3-100.000MHZ-F
click to zoom

AOCJY3-100.000MHZ-F Details

  • Manufacturer Part Number:

    AOCJY3-100.000MHZ-F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-5/4

  • Factory Lead Time:

    32 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    7

  • Additional Feature:

    TRAY

  • Aging:

    0.1 PPM/FIRST YEAR

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    0.03%

  • Frequency Stability-Voltage:

    0.002 ppm

  • Input Power:

    1.2 W

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    5

  • Operating Frequency-Nom:

    100 MHz

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    15 pF

  • Oven Supply Voltage:

    3.3V

  • Physical Dimension:

    25.4mm x 25.4mm x 13.0mm

  • Supply Voltage-Max:

    3.46 V

  • Supply Voltage-Min:

    3.13 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Warm-up Power:

    3.6 W

  • Warm-up Time-Max:

    3 Minute

AOCJY3-100.000MHZ-F Frequently Asked Questions (FAQs)

  • Abracon recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s).
  • Yes, AOCJY3-100.000MHZ-F is compatible with lead-free soldering processes and is RoHS compliant.
  • The maximum operating temperature range for AOCJY3-100.000MHZ-F is -40°C to +85°C (-40°F to +185°F).
  • Yes, AOCJY3-100.000MHZ-F is designed to withstand high-vibration applications and meets the requirements of MIL-STD-202, Method 204, Condition D.
  • The typical phase noise performance of AOCJY3-100.000MHZ-F is -120 dBc/Hz at 10 kHz offset and -150 dBc/Hz at 100 kHz offset.
