AP1121ASL-13 - Diodes Incorporated

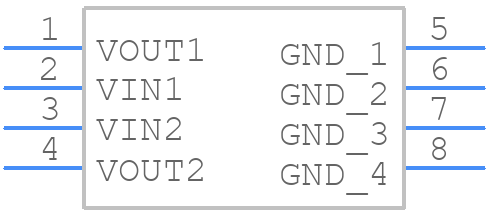

AP1121ASL-13 Details

• Manufacturer Part Number:

  AP1121ASL-13

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Pin Count:

  8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Diodes Incorporated

• YTEOL:

  0

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  1.4 V

• Dropout Voltage1-Nom:

  1.3 V

• Dropout Voltage2-Max:

  1.4 V

• Input Voltage Absolute-Max:

  18 V

• Input Voltage-Max:

  12 V

• Input Voltage-Min:

  4.8 V

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e3

• Length:

  4.9 mm

• Line Regulation-Max:

  0.0066%

• Load Regulation-Max:

  0.033%

• Moisture Sensitivity Level:

  3

• Number of Functions:

  2

• Number of Outputs:

  2

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  125 °C

• Output Current1-Max:

  1 A

• Output Current2-Max:

  1 A

• Output Voltage1-Max:

  3.365 V

• Output Voltage1-Min:

  3.235 V

• Output Voltage1-Nom:

  3.3 V

• Output Voltage2-Max:

  2.55 V

• Output Voltage2-Min:

  2.45 V

• Output Voltage2-Nom:

  2.5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.75 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Voltage Tolerance-Max:

  2%

• Width:

  3.9 mm
