A good PCB layout for the AP130-33YG-13 should include a solid ground plane, wide traces for power and ground, and a thermal relief pattern under the IC to facilitate heat dissipation.
To ensure stable operation with a varying input voltage, use a high-quality input capacitor, add a voltage regulator if necessary, and consider using a voltage supervisor to monitor the input voltage.
For EMI and EMC compliance, use a shielded enclosure, keep sensitive traces away from the AP130-33YG-13, and add EMI filters or chokes as needed. Also, ensure proper grounding and decoupling.
To troubleshoot issues, start by checking the input voltage, output voltage, and current consumption. Use an oscilloscope to inspect the waveforms, and verify that the input and output capacitors are properly sized and placed.
For high-temperature applications, ensure good airflow, use a heat sink if necessary, and consider using a thermal interface material (TIM) to improve heat transfer between the AP130-33YG-13 and the heat sink.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP130-33YG-13 Overview

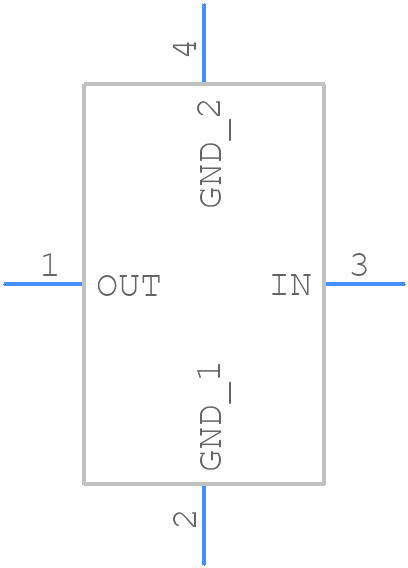

Use the download button to access the AP130-33YG-13 schematic symbol, PCB footprint, and 3D model.
