Part Image

AP1501A-K5G-13 - Diodes Incorporated

Description: Switching Voltage Regulators BUCK CONV PWM 150KHz 5A 4.5-40V 1.23V

Download AP1501A-K5G-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

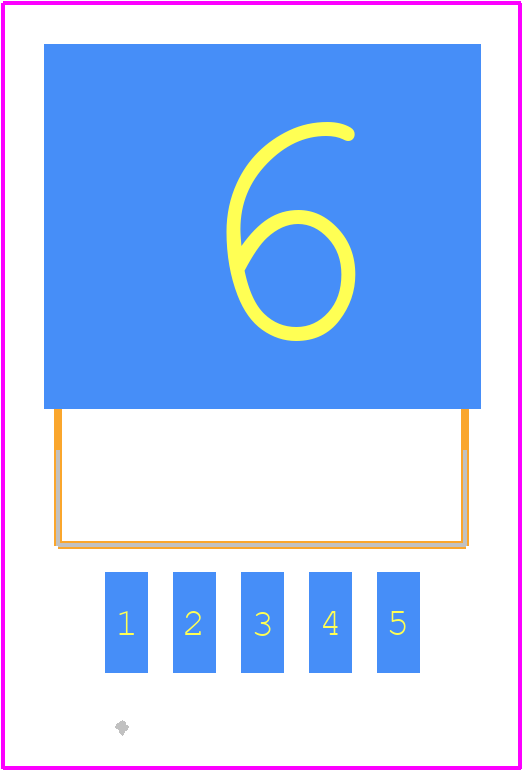

AP1501A-K5G-13 - Diodes Incorporated PCB footprint - Other - Other - AP1501A-K5G-13-2
click to zoom

AP1501A-K5G-13 Details

  • Manufacturer Part Number:

    AP1501A-K5G-13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    D2PAK

  • Package Description:

    TO-263, 5 PIN

  • Pin Count:

    4

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    3

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1.23V TO 37V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PSSO-G5

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    7.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SMSIP5H,.6,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.85 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    173 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9.15 mm

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AP1501A-K5G-13 Overview

Use the download button to access the AP1501A-K5G-13 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AP150, or try a keyword search, such as Switching Regulator or Controllers

Parts related to AP1501A-K5G-13

Showing 0 results

AP1501A-K5G-13 Alternates

Showing results

Image Part Number Model
Part Image AP1501A-K5L-13 Diodes Incorporated

Switching Regulator, Voltage-mode, 7.5A, 173kHz Switching Freq-Max, BIPolar, PSSO5, ROHS COMPLIANT, TO-263, 5 PIN

Part Image AP1501A-K5L-U Diodes Incorporated

Switching Regulator, Voltage-mode, 7.5A, 173kHz Switching Freq-Max, BIPolar, PSSO5, ROHS COMPLIANT, TO-263, 5 PIN
