AP1534SG-13 - Diodes Incorporated

Description: Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 2A 8-SOIC (0.154", 3.90mm Width)

Download AP1534SG-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

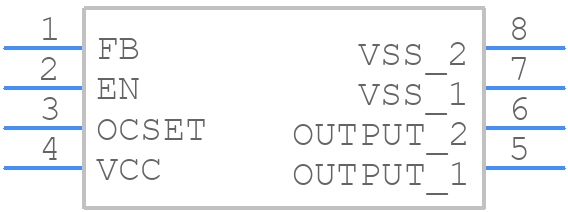

Symbol
AP1534SG-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
AP1534SG-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SO-8_2024-9
click to zoom
3D Models
AP1534SG-13 - Diodes Incorporated - 3D model - Small Outline Packages - SO-8_2024-9
click to zoom

AP1534SG-13 Details

  • Manufacturer Part Number:

    AP1534SG-13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8V TO 18V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    3.6 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    18 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    400 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AP1534SG-13 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a large copper area connected to the thermal pad (exposed pad) on the bottom of the package. This copper area should be connected to a solid ground plane to dissipate heat efficiently.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, make sure to decouple the input and output with suitable capacitors, and use a low-ESR output capacitor to minimize voltage ripple.
  • Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the device.
  • While the AP1534SG-13 is rated for operation up to 125°C, it's essential to consider the device's power dissipation and thermal management in high-temperature environments. Ensure proper heat sinking and consider derating the device's output current to prevent overheating.
  • To protect the AP1534SG-13 from input voltage surges and spikes, consider adding a TVS (transient voltage suppressor) diode or a voltage clamp circuit at the input. This will help absorb or clamp voltage transients and prevent damage to the device.
