AP21410FM-7 - Diodes Incorporated

Description: Power Switch ICs - Power Distribution 0.5A SGL Ch USB 2.0 Curr Limited Switch

Download AP21410FM-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

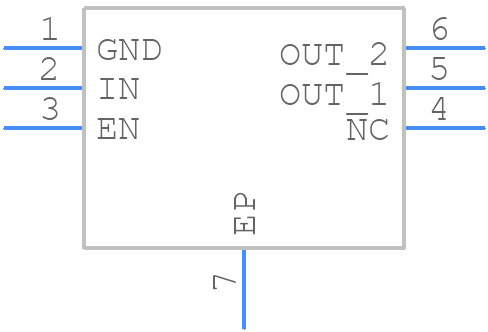

AP21410FM-7 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
AP21410FM-7 - Diodes Incorporated PCB footprint - Small Outline No-lead - Small Outline No-lead - U-DFN2018-6
click to zoom
3D Models
AP21410FM-7 - Diodes Incorporated - 3D model - Small Outline No-lead - U-DFN2018-6
click to zoom

AP21410FM-7 Details

  • Manufacturer Part Number:

    AP21410FM-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-6

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Built-in Protections:

    OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    X-PDSO-N6

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    0.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Shape:

    UNSPECIFIED

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

AP21410FM-7 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended to be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • The device is sensitive to temperature and humidity. Ensure that the PCB is baked at 125°C for 24 hours before soldering, and use a soldering iron with a temperature below 260°C.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for input decoupling, placed as close to the VIN pin as possible.
  • Ensure that the device is not exposed to voltage exceeding the maximum rating. Use a TVS diode or a zener diode to clamp the voltage and prevent EOS damage.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for output filtering, placed as close to the VOUT pin as possible.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AP21410FM-7 Overview

Use the download button to access the AP21410FM-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP214, or try a keyword search, such as Peripheral Drivers
