AP21510FM-7 - Diodes Incorporated

Description: Power Switch ICs - Power Distribution 0.5A SGL Ch USB 2.0 Curr Limited Switch

Download AP21510FM-7 Model

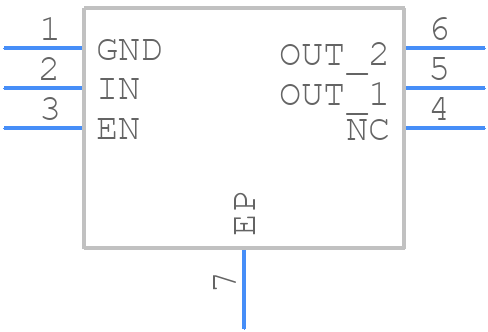

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AP21510FM-7 - Diodes Incorporated PCB footprint - Small Outline No-lead - Small Outline No-lead - U-DFN2018-6 1
click to zoom
3D Models
AP21510FM-7 - Diodes Incorporated  - 3D model - Small Outline No-lead - U-DFN2018-6 1
click to zoom

AP21510FM-7 Details

  • Manufacturer Part Number:

    AP21510FM-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-6

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Built-in Protections:

    OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    X-PDSO-N6

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    0.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Shape:

    UNSPECIFIED

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

AP21510FM-7 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer. This helps to dissipate heat efficiently. Additionally, it's recommended to have a minimum of 2oz copper thickness and a thermal via array under the IC to improve heat dissipation.
  • To ensure stability, it's essential to follow the recommended layout and component placement guidelines. Keep the input and output capacitors close to the IC, and use a low-ESR capacitor for the output. Also, ensure the input voltage is within the recommended range, and the output is not overloaded. Finally, add a small ceramic capacitor (e.g., 10nF) between the FB pin and GND to improve stability.
  • The AP21510FM-7 is rated for operation up to 85°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 70°C to ensure a margin of safety. Above 70°C, the IC's performance and reliability may degrade.
  • Yes, the AP21510FM-7 is suitable for use in high-vibration environments. The IC is designed to withstand vibrations up to 10G. However, it's essential to ensure the PCB is properly secured and the IC is properly soldered to prevent mechanical stress.
  • To troubleshoot issues, start by checking the input voltage, output voltage, and current. Verify that the input voltage is within the recommended range, and the output is not overloaded. Check for any signs of overheating, and ensure the PCB layout is correct. If the issue persists, consult the datasheet and application notes for guidance.
