A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure stability and prevent oscillations, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to use a sufficient output capacitor with a low ESR, and consider adding a small ceramic capacitor in parallel with the output capacitor to filter out high-frequency noise.
Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the device.
While the AP2156SG-13 is rated for operation up to 125°C, it's essential to consider the thermal derating curve and ensure that the device does not exceed the maximum junction temperature. Proper heat sinking and thermal management are crucial in high-temperature environments.
To calculate the output voltage ripple and noise, consider the switching frequency, output capacitor value, and ESR. A good rule of thumb is to use the following formula: ΔVout = (Iout * ESR) / (f_sw * C_out), where ΔVout is the output voltage ripple, Iout is the output current, ESR is the output capacitor's equivalent series resistance, f_sw is the switching frequency, and C_out is the output capacitance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP2156SG-13 Overview

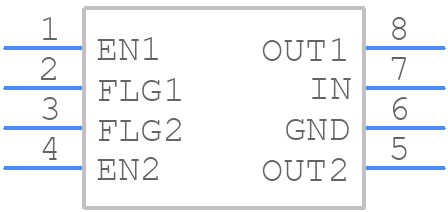

Use the download button to access the AP2156SG-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP215,
or try a keyword search, such as Peripheral Drivers
