AP2303MPTR-G1 - Diodes Incorporated

Description: Converter, DDR Voltage Regulator IC 1 Output 8-SO-EP

Download AP2303MPTR-G1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

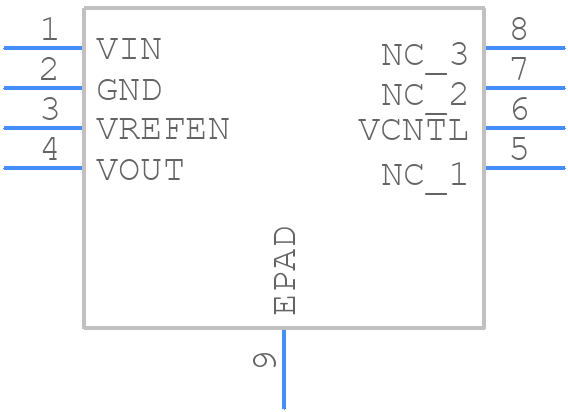

AP2303MPTR-G1 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints

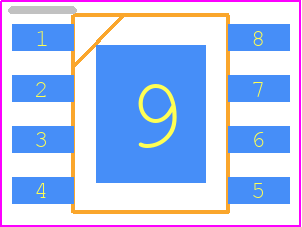

AP2303MPTR-G1 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - PSOP-8
click to zoom
3D Models
AP2303MPTR-G1 - Diodes Incorporated - 3D model - Small Outline Packages - PSOP-8
click to zoom

AP2303MPTR-G1 Details

  • Manufacturer Part Number:

    AP2303MPTR-G1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Load Regulation-Max(%):

    0.02%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AP2303MPTR-G1 Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the AP2303MPTR-G1 is 18V, but it's recommended to operate within the specified input voltage range of 7V to 15V for optimal performance and reliability.
  • To ensure the AP2303MPTR-G1 operates within its thermal limits, provide adequate heat sinking, keep the device away from heat sources, and avoid high ambient temperatures. The device's thermal shutdown feature will also help protect it from overheating.
  • The minimum input capacitance required for the AP2303MPTR-G1 is 1uF, but it's recommended to use a higher value (e.g., 4.7uF) to ensure stable operation and minimize input voltage ripple.
  • Yes, the AP2303MPTR-G1 is suitable for high-reliability applications due to its automotive-grade qualification and compliance with industry standards such as AEC-Q100.
  • To minimize EMI, follow good PCB layout practices such as separating the input and output stages, using a solid ground plane, and keeping the switching node (SW) away from sensitive analog circuits.
