AP2822GKATR-G1 - Diodes Incorporated

Description: Power Switch ICs - Power Distribution USB Power Switch

Download AP2822GKATR-G1 Model

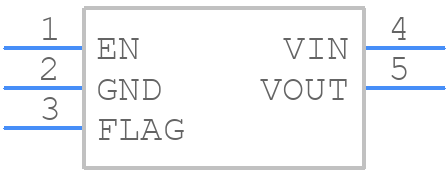

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AP2822GKATR-G1 - Diodes Incorporated PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SOT-23-5 height 1.45
click to zoom
3D Models
AP2822GKATR-G1 - Diodes Incorporated  - 3D model - SOT23 (5-Pin) - SOT-23-5 height 1.45
click to zoom

AP2822GKATR-G1 Details

  • Manufacturer Part Number:

    AP2822GKATR-G1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOT-23, 5 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.92 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • On-state Resistance-Max (Ron):

    0.11 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

AP2822GKATR-G1 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to use a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and to place thermal vias under the IC to dissipate heat effectively.
  • To ensure stable output voltage regulation, it's essential to follow the recommended component values and layout guidelines in the datasheet, and to decouple the input and output with suitable capacitors to minimize noise and ripple.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, it's recommended to derate the device's performance at high ambient temperatures (above 85°C) to ensure reliable operation and prevent thermal shutdown.
  • The AP2822GKATR-G1 is rated for a maximum output current of 2A, but it's essential to consider the device's thermal limitations and power dissipation when designing for high-current applications. Additional heat sinking or thermal management may be required.
  • To protect the device from input voltage surges or spikes, it's recommended to add a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input to limit the voltage to within the recommended operating range.
