A good PCB layout for the AP3108LGSTR-G1 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the AP3108LGSTR-G1 operates within its SOA, monitor the input voltage, output current, and junction temperature. Ensure the input voltage is within the recommended range, the output current is within the maximum rating, and the junction temperature is below the maximum rating of 150°C.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed as close to the VIN pin as possible to minimize noise and ensure stable operation.
The output voltage of the AP3108LGSTR-G1 can be calculated using the formula: VOUT = VREF x (1 + R1/R2), where VREF is the internal reference voltage (1.25V), and R1 and R2 are the feedback resistors.
The AP3108LGSTR-G1 can deliver a maximum output current of 3A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP3108LGSTR-G1 Overview

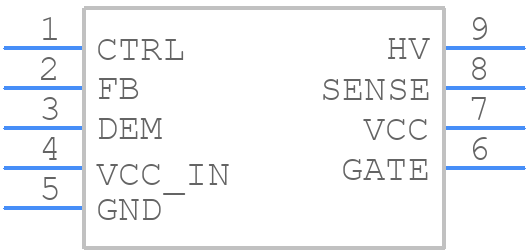

Use the download button to access the AP3108LGSTR-G1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP310,
or try a keyword search, such as Switching Regulator or Controllers
