AP3306S10-13 footprint, schematic symbol and 3D model by Diodes Incorporated

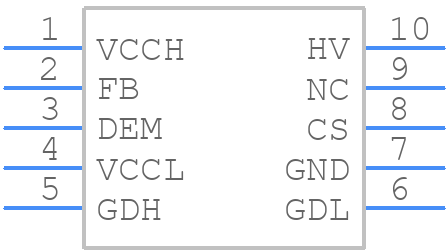

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AP3306S10-13
Part Number AP3306S10-13
Manufacturer Diodes Incorporated
Pin Count 10
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SO-10 (Type A1)
Released Date Apr 25, 2024
Last Modified Date Apr 25, 2024 2:29 PM UTC
Pinout / Pin List Click Here (Member Only)

AP3306S10-13 Details

Manufacturer Part Number:
AP3306S10-13
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SOP-10
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
12 Weeks
Manufacturer:
Diodes Incorporated
YTEOL:
7
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
50 V
Input Voltage-Min:
10 V
Input Voltage-Nom:
18 V
JESD-30 Code:
R-PDSO-G10
JESD-609 Code:
e3
Length:
4.9 mm
Number of Functions:
1
Number of Terminals:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.3 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SOP10,.25,40
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.75 mm
Supply Current-Max (Isup):
2.9 mA
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
125 kHz
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1 mm
Terminal Position:
DUAL
Width:
3.9 mm

AP3306S10-13 Frequently Asked Questions (FAQs)

The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 10mm x 10mm, and connecting it to a large copper area on the PCB to dissipate heat efficiently.
To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF, and to place the output capacitor close to the device. Additionally, the input capacitor should be placed close to the input pin to reduce noise and ripple.
The maximum ambient temperature for the AP3306S10-13 is 85°C, but it can be derated to 70°C for high-reliability applications.
Yes, the AP3306S10-13 is designed to withstand high-vibration environments, but it is recommended to follow proper PCB mounting and soldering techniques to ensure reliable operation.
The power dissipation of the AP3306S10-13 can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
