A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer. This helps to dissipate heat efficiently. Additionally, it's recommended to have a minimum of 2oz copper thickness and a thermal via array under the IC to improve heat dissipation.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to decouple the input and output with suitable capacitors, and use a low-ESR output capacitor to minimize oscillations. Also, ensure the feedback network is properly compensated to prevent oscillations.
The AP3445LW6-7 is rated for operation up to 85°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 70°C to ensure a margin of safety and prevent thermal shutdown.
While the AP3445LW6-7 is not specifically designed for high-humidity environments, it can still be used in such conditions with proper precautions. Ensure the device is properly sealed or conformally coated to prevent moisture ingress. Additionally, follow the recommended PCB layout and assembly guidelines to minimize the risk of moisture-related issues.
A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the input capacitor. This value provides a good balance between input ripple rejection and stability. Make sure to choose a capacitor with a suitable voltage rating and low ESR to ensure optimal performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP3445LW6-7 Overview

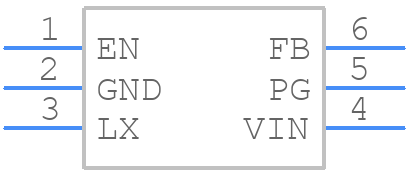

Use the download button to access the AP3445LW6-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP344,
or try a keyword search, such as Switching Regulator or Controllers
