AP62201WU-7 - Diodes Incorporated

Description: Switching Voltage Regulators DCDC Conv HV Buck TSOT26(STD) T&R 3K

Download AP62201WU-7 Model

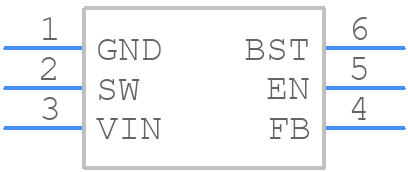

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AP62201WU-7 - Diodes Incorporated PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - TSOT26 (Standard)
click to zoom
3D Models
AP62201WU-7 - Diodes Incorporated  - 3D model - SOT23 (6-Pin) - TSOT26 (Standard)
click to zoom

AP62201WU-7 Details

  • Manufacturer Part Number:

    AP62201WU-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOT-26, 6 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.2 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    7 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    750 kHz

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

AP62201WU-7 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to use a sufficient output capacitor with a low ESR value, and consider adding a small ceramic capacitor in parallel to the output capacitor to filter out high-frequency noise.
  • Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the device.
  • While the AP62201WU-7 is rated for operation up to 125°C, it's essential to consider the thermal derating curve and ensure that the device does not exceed the maximum junction temperature. Proper heat sinking and thermal management are crucial in high-temperature environments.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values against the recommended values. Use an oscilloscope to inspect the output voltage waveform and look for signs of oscillation or noise. If the issue persists, consider consulting the datasheet and application notes or contacting Diodes Incorporated's technical support.
