A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure stability in high-current applications, it's essential to follow the recommended layout and component selection guidelines, including the use of a sufficient output capacitor and a low-ESR input capacitor. Additionally, the input voltage should be well-regulated, and the device should be operated within its recommended operating conditions.
The maximum junction temperature that the AP62201Z6-7 can withstand is 150°C. It's essential to ensure that the device operates within its recommended operating conditions to prevent overheating and ensure reliable operation.
While the AP62201Z6-7 can operate in high-temperature environments, it's essential to consider the device's thermal limitations and ensure that it operates within its recommended operating conditions. The device's performance and reliability may degrade at high temperatures, so it's crucial to evaluate its performance in the specific application environment.
To troubleshoot issues with the AP62201Z6-7, start by verifying that the device is operated within its recommended operating conditions, including input voltage, output current, and ambient temperature. Check the PCB layout and component selection to ensure they meet the recommended guidelines. Use oscilloscopes and thermal imaging tools to identify any anomalies or hotspots. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP62201Z6-7 Overview

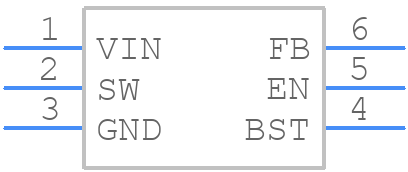

Use the download button to access the AP62201Z6-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP622,
or try a keyword search, such as Switching Regulator or Controllers
