A good PCB layout for the AP62500SJ-7 should ensure that the input and output capacitors are placed close to the IC, and the power traces are wide and short to minimize inductance. Additionally, a solid ground plane and proper thermal management are crucial for optimal performance.
The input capacitor should have a low ESR and be rated for the input voltage. A 10uF to 22uF ceramic capacitor is a good starting point. The output capacitor should be selected based on the output voltage and current requirements. A 22uF to 47uF ceramic capacitor is a good starting point. Make sure to follow the datasheet's recommended capacitor values and characteristics.
The AP62500SJ-7 can operate in ambient temperatures up to 85°C. However, the junction temperature should not exceed 125°C. Proper thermal management, such as using a heat sink or a thermal pad, is recommended to ensure reliable operation.
Yes, the AP62500SJ-7 is designed to operate in high-vibration environments. However, it's essential to ensure that the PCB is properly secured and the components are well-soldered to prevent mechanical stress and vibration-induced failures.
To troubleshoot issues with the AP62500SJ-7, start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are properly selected and placed. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to monitor the output voltage and current waveforms. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP62500SJ-7 Overview

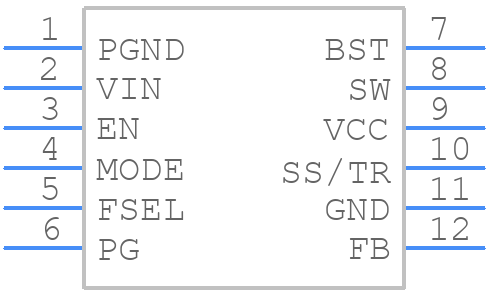

Use the download button to access the AP62500SJ-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP625,
or try a keyword search, such as Switching Regulator or Controllers
