A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer. This helps to dissipate heat efficiently. Additionally, it's recommended to have a minimum of 2oz copper thickness and a thermal via array under the IC to further improve thermal performance.
To ensure stability and reliability, it's essential to follow the recommended operating conditions, such as input voltage, output voltage, and output current. Additionally, proper decoupling, filtering, and PCB layout are crucial. It's also recommended to add input and output capacitors as close to the IC as possible to minimize noise and ripple.
For EMI and EMC compliance, it's essential to follow proper PCB layout and design guidelines, such as keeping the switching node (SW) as short as possible, using a shielded inductor, and adding EMI filters if necessary. Additionally, ensure that the input and output cables are properly shielded and routed away from noise-sensitive components.
To troubleshoot issues with the AP62600SJ-7, start by checking the input voltage, output voltage, and output current. Verify that the component values and PCB layout match the recommended design. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for noise, ripple, or oscillations on the output. If the issue persists, consult the datasheet and application notes or contact Diodes Incorporated's technical support.
Operating the AP62600SJ-7 at high ambient temperatures can reduce its reliability and lifespan. It's essential to ensure proper heat sinking and thermal management to prevent overheating. The device's junction temperature (TJ) should be kept below the maximum rated temperature (150°C) to prevent thermal shutdown or damage. Consult the datasheet for thermal derating information and take necessary precautions to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP62600SJ-7 Overview

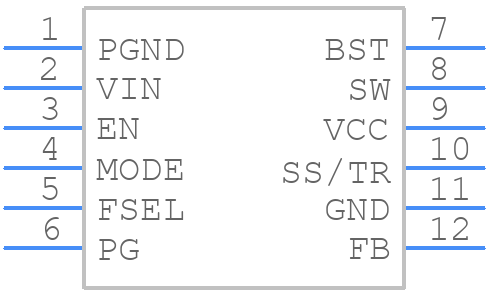

Use the download button to access the AP62600SJ-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP626,
or try a keyword search, such as Switching Regulator or Controllers
